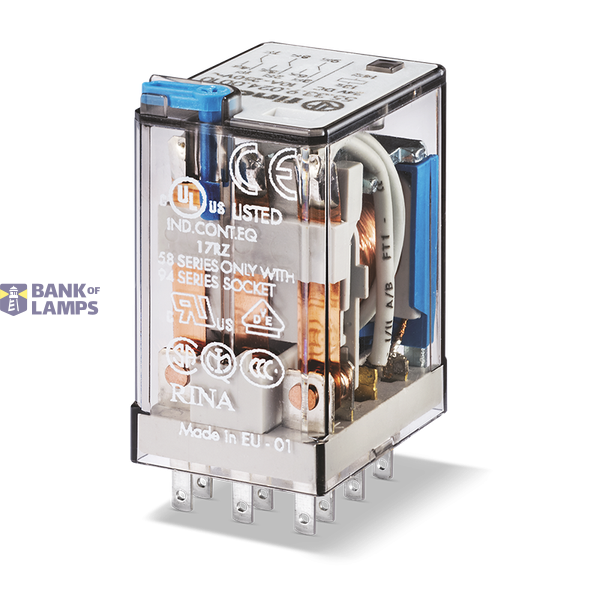

RELÈ INDUSTRIALE 3 CONTATTI 10A

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	RELÈ INDUSTRIALE 3 CONTATTI 10A
Brand	FINDER
ETIM	EC001437
Nominal current	10 A
Type of switch contact	Single contact
Type of electric connection	Plug-in connection
With LED indication	Yes
Voltage type for actuating	DC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0

Packing details

Packing level 1

8012823434186

Other Technical data

Width	20.7 mm
Height	37.2 mm
Depth	27.7 mm
Drive, polarization	Polarized
Drive, switching attitude	Mono stable
With forced-guided contacts	No
Complete with socket	No
Rated control supply voltage at DC	60 V
Material of contact surface	Gold
Material contact	Other copper alloys
Number of contacts as change-over contact	3
Material of contact insert	Duroplast

Description

Relè industriale. (A): 10 A. N°contatti: 3 Configurazione contatti: CO Materiale contatti: AgNi+Au Collegamento elettrico: raccordo a innesto Alimentazione: DC Volt DC: 60 V. polarizzato monostabile Categoria di protezione: RT I. con indicatore a LED: sì Optional: Pulsante di prova+LED+diodo Accessori: Zoccolo S.94.
