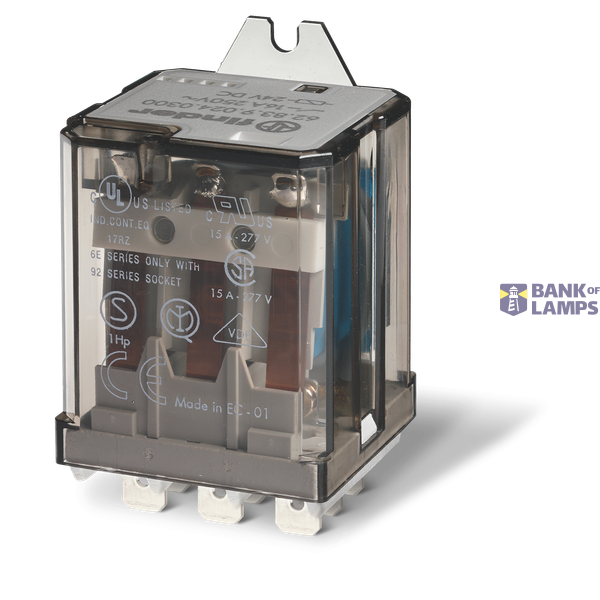

RELE' DI POTENZA image 1
FINDER

RELE' DI POTENZA

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name RELE' DI POTENZA
Brand FINDER
ETIM EC001437
Nominal current 16 A
Type of switch contact Single contact
Type of electric connection Soldering flag connection
Rated control supply voltage at AC 50 Hz 110 V
With LED indication Yes
Voltage type for actuating AC
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 3

Packing details

Packing level 1 8012823433974

Other Technical data

Width 38.2 mm
Height 68 mm
Depth 35.8 mm
Drive, polarization Polarity free
Drive, switching attitude Mono stable
With forced-guided contacts No
Complete with socket No
Rated control supply voltage at AC 60 Hz 110 V
Material of contact surface Untreated
Material contact Other copper alloys
Number of contacts as change-over contact 0
Material of contact insert Duroplast

Description

Relè di potenza. (A): 16 A. N°contatti: 3 Configurazione contatti: NO Materiale contatti: AgCdO Collegamento elettrico: connessione a linguetta saldata Faston 250 Alimentazione: AC Volt AC: 110 V. non polarizzato monostabile Categoria di protezione: RT I. con indicatore a LED: sì
