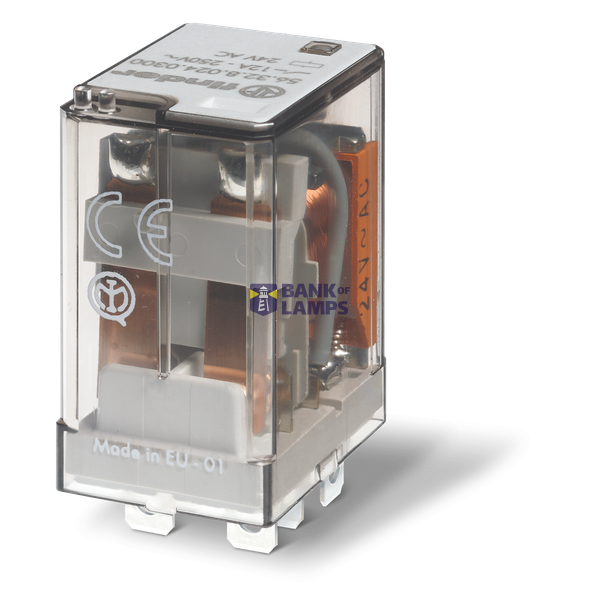

RELÈ DI POTENZA 4 CONTATTI 12A

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	RELÈ DI POTENZA 4 CONTATTI 12A
Brand	FINDER
ETIM	EC001437
Nominal current	12 A
Type of switch contact	Single contact
Type of electric connection	Plug-in connection
With LED indication	Yes
Voltage type for actuating	DC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0

Packing details

Packing level 1

8012823432953

Other Technical data

Width	40.8 mm
Height	37.2 mm
Depth	27.7 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
With forced-guided contacts	No
Complete with socket	No
Rated control supply voltage at DC	125 V
Material of contact surface	Untreated
Material contact	Other copper alloys
Number of contacts as change-over contact	4
Material of contact insert	Duroplast

Description

Relè di potenza. (A): 12 A. N°contatti: 4 Configurazione contatti: CO Materiale contatti: AgSnO2 Collegamento elettrico: raccordo a innesto Alimentazione: DC Volt DC: 125 V. non polarizzato monostabile Categoria di protezione: RT I. con indicatore a LED: sì Optional: Pulsante di prova+indicatore meccanico Accessori: Adattatore per fissaggio;zoccolo S.96.
