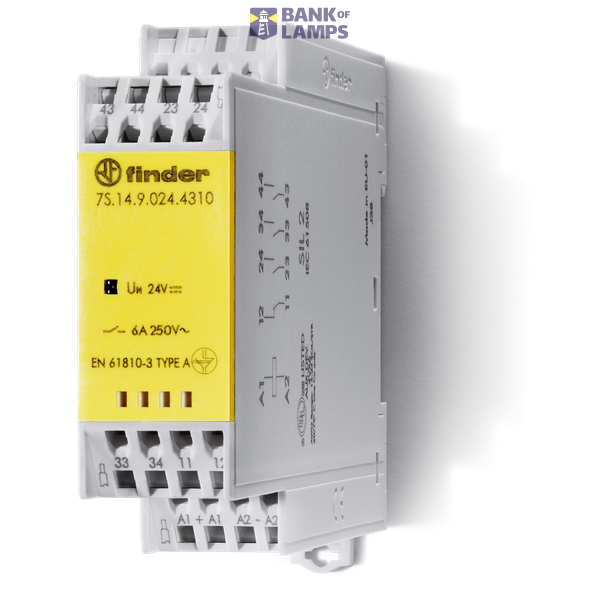

RELAY WITH FORCIBLY GUIDED CONTACTS

Name: RELAY WITH FORCIBLY GUIDED CONTACTS
Brand: FINDER
Availability: Discontinued

Discontinued Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	RELAY WITH FORCIBLY GUIDED CONTACTS
Brand	FINDER
ETIM	EC001449
Model	Expansion device
Number of outputs, safety related, undelayed, with contact	2
Type of electric connection	Spring clamp connection
Rail mounting possible	Yes
Performance level according to EN ISO 13849-1	Level d
SIL according to IEC 61508	2

Packing details

Packing level 1	8012823375953
Packing level 2	8012823374161

Other Technical data

Width	22.5 mm
Height	78.8 mm
Depth	96 mm
With approval according to UL	Yes
With detachable clamps	No
With start input	No
With feedback circuit	Yes
Rated control supply voltage at AC 50 Hz	195-264 V
Rated control supply voltage at AC 60 Hz	195-264 V
With muting function	No
With approval for BG BIA	No
Voltage type for actuating	AC
Evaluation inputs	2-channel

Description

Modular relays with forcibly guided contacts Nr.contacts: 2NO+2NC Contact Material: AgSnO2 Model: Expansion device With detachable clamps: no Type of electric connection: Spring clamp connection Rail mounting possible: yes Coil version: AC Volt AC: from 195 to 264 V. Volt AC: from 195 to 264 V. With approval according to UL: yes With approval for TÜV: no Evaluation inputs: 2-channel With start input: no With feedback circuit: yes Number of outputs, safety related, undelayed, with contact: 2 With approval for BG BIA: no Performance level acc. EN ISO 13849-1: Level d SIL according to IEC 61508: 2 (A): 6 Protection Category: IP20
