Relay module
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Relay module |
| Brand | WAGO |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC001437 |
| Nominal current | 16 A |
| Type of switch contact | Single contact |
| Type of electric connection | Spring clamp connection |
| Rated control supply voltage at AC 50 Hz | 230 V |
| Degree of protection (IP) | IP20 |
| With LED indication | Yes |
| Voltage type for actuating | AC |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
Packing details
| Packing level 1 | 4045454484798 |
| Packing level 2 | 4045454484798 |
Other Technical data
| Width | 15 mm |
| Height | 54 mm |
| Depth | 86 mm |
| With detachable clamps | No |
| Drive, polarization | Polarity free |
| Drive, switching attitude | Mono stable |
| With forced-guided contacts | No |
| Complete with socket | Yes |
| Rated control supply voltage at AC 60 Hz | 230 V |
| Number of contacts as change-over contact | 1 |
Description

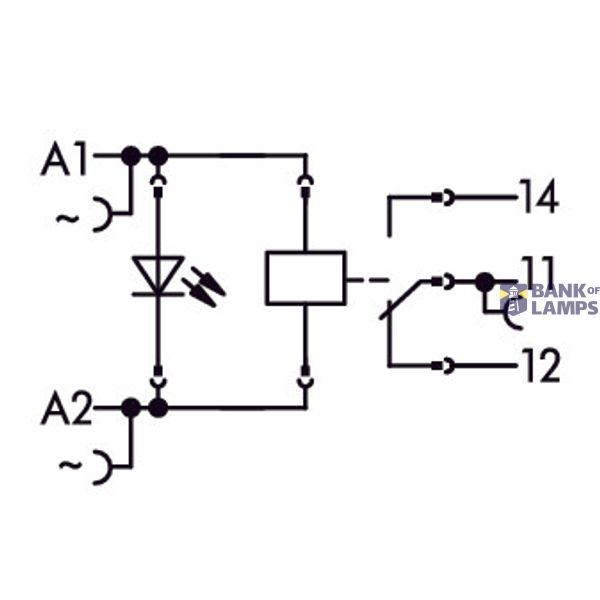

Relay module | Nominal input voltage: 230 VAC | 1 changeover contact | Limiting continuous current: 16 A | with gold contacts | Red status indicator | Module width: 15 mm | 2,50 mm² | gray
