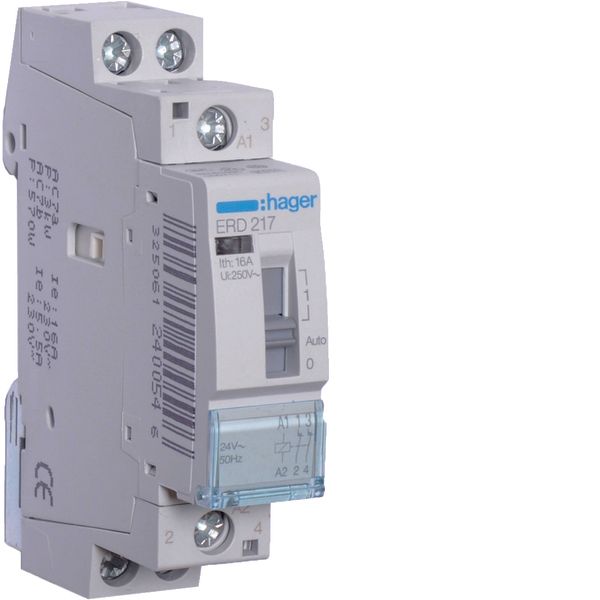

Relay 16A, 2NC, 24V
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
23,509 €
per pcs
EAN: 3250612400539
MPN: ERD217
Package: 1
Pallet: 2592
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Relay 16A, 2NC, 24V |
| Brand | Hager |
| Categories |
Assembly Accessories and Parts
|
| Harmonized System Code | 8536 5080 00 |
| Rated operating voltage | 230 V |
| Voltage type (excitation voltage) | AC |
| Voltage type (operating voltage) | AC |
| Degree of protection (IP) | IP2X |
| Rated operation current | 16 A |
| Rated excitation voltage | 24 V |
Packing details
| Packing level 1 | 3250612400539, 3250612400539 |
| Packing level 2 | 3250612400539 |
| Packing level 3 | 3250612400539 |
Other Technical data
| Built-in depth | 60 mm |
| Utility category | 7 |
| Max. incandescent lamp load | 1100 W |
| Max. load fluorescent lamp | 570 VA |
| Max. load fluorescent lamp (Duo circuit) | 1200 VA |
| Max. load fluorescent lamp (parallel compensated) | 490 VA |
| Slider for hand switch | Yes |
| Additional equipment possible | Yes |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 0 |
| Hum-free | No |
| With day/night function | No |
Description
Relay 16A, 2NC, 24V~50Hz
