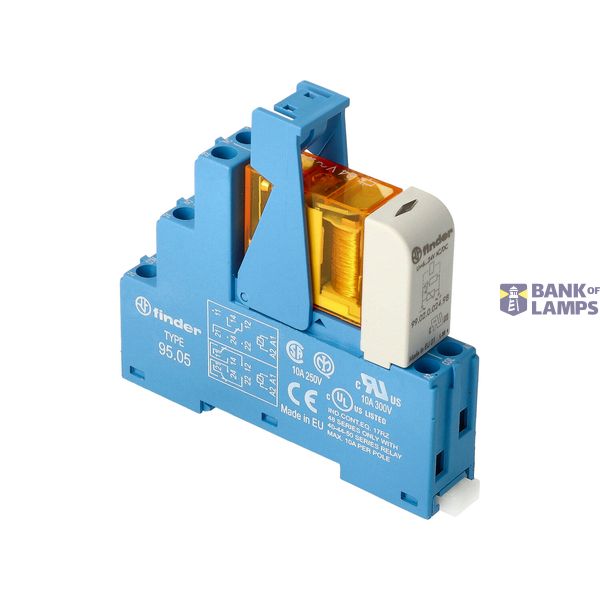

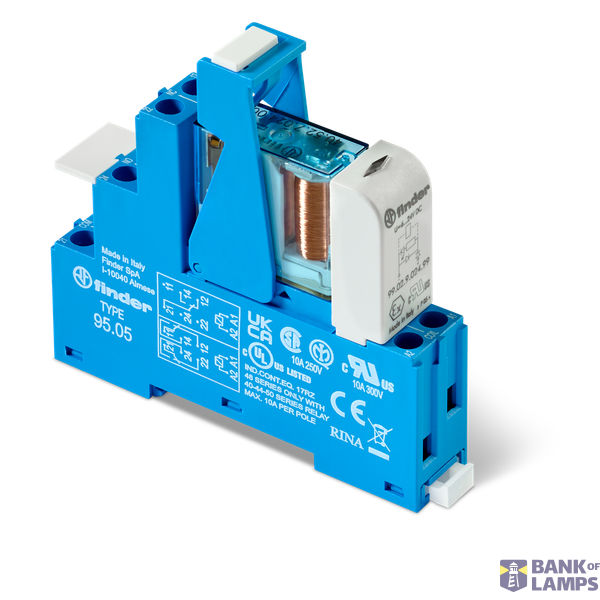

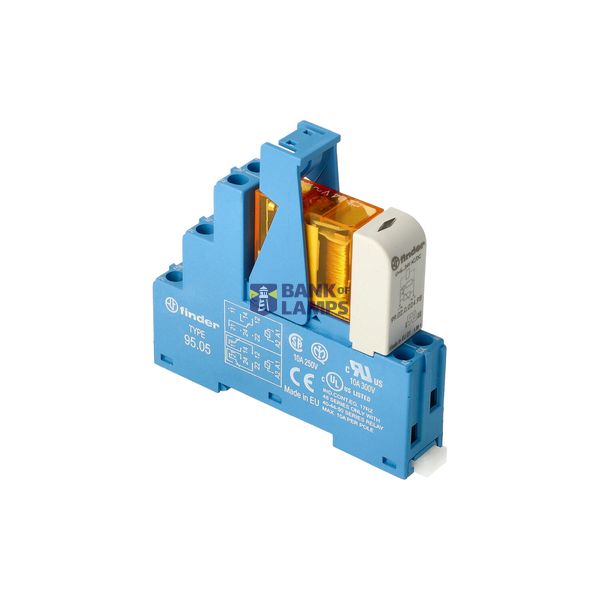

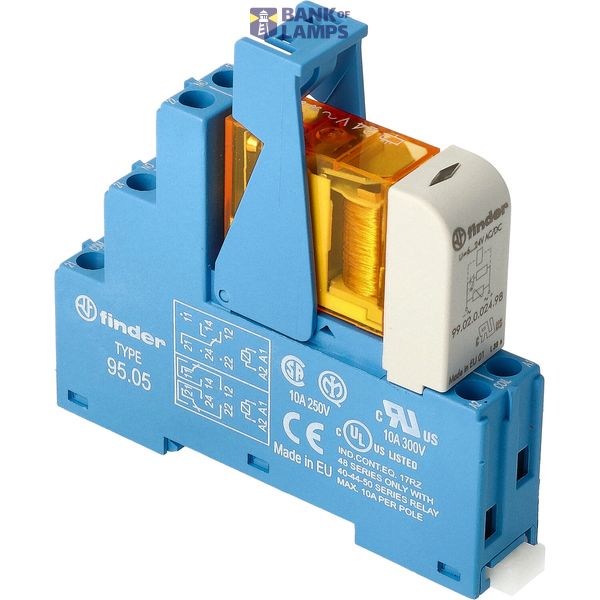

Rel. interface Mod.screw 2CO 8A/24VAC/Agni+Au/LED/varistor (48.52.8.024.5060)
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Rel. interface Mod.screw 2CO 8A/24VAC/Agni+Au/LED/varistor (48.52.8.024.5060) |
| Brand | FINDER |
| ETIM | EC001437 |
| Nominal current | 8 A |
| Type of switch contact | Single contact |
| Type of electric connection | Screw connection |
| Rated control supply voltage at AC 50 Hz | 24 V |
| Degree of protection (IP) | IP20 |
| Voltage type for actuating | AC |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
Packing details
| Packing level 1 | 8012823395517 |
Other Technical data
| With detachable clamps | Yes |
| Drive, polarization | Polarity free |
| Drive, switching attitude | Mono stable |
| With forced-guided contacts | No |
| Complete with socket | Yes |
| Rated control supply voltage at AC 60 Hz | 24 V |
| Number of contacts as change-over contact | 2 |
Downloads
Description
Relay interface modules (A): 8 Nr.contacts: 2 Contacts configuration: CO Contact Material: AgNi+Au Type of electric connection: Screw connection Coil version: AC Volt AC: 24 V. Polarity free Mono stable Protection category: IP20 Options: Green LED+varistor Accessories: Jumper link
