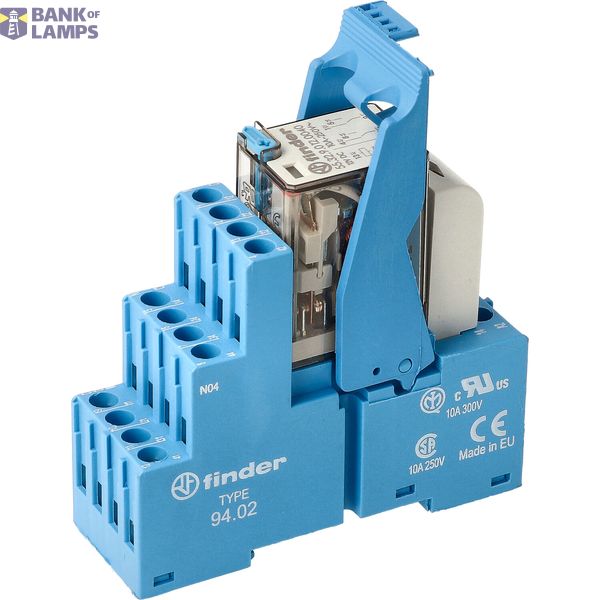

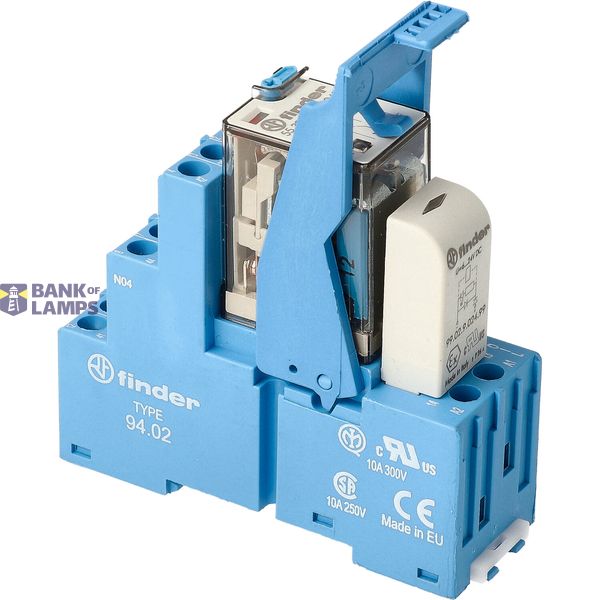

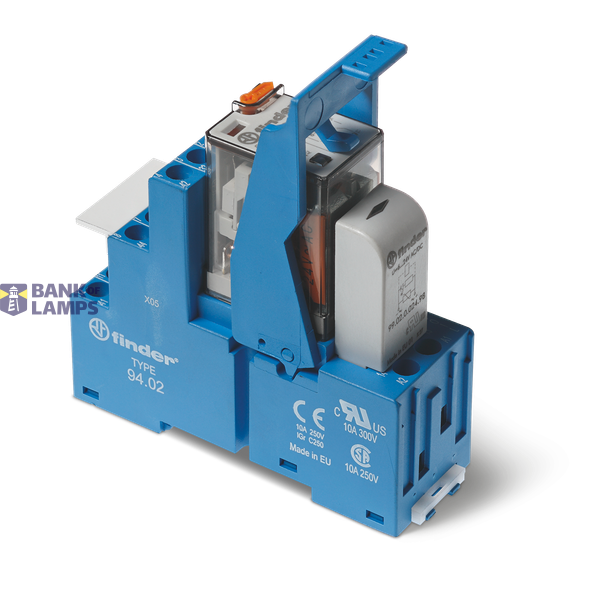

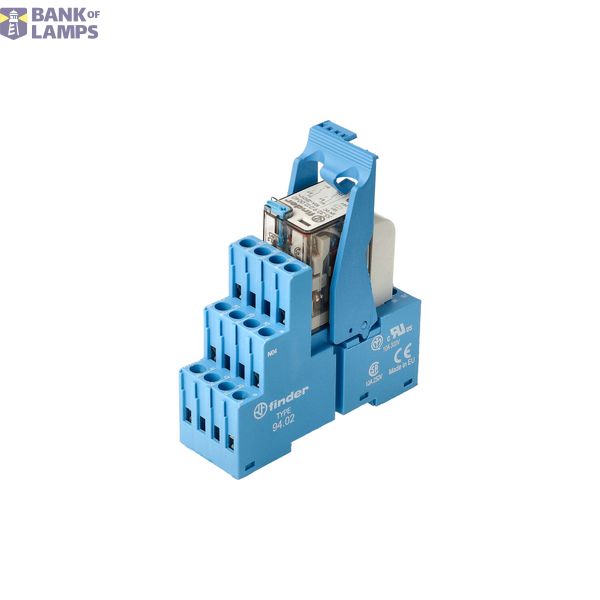

Rel. interface Mod.screw 2CO 10A/24VDC/AgCdO/LED (58.32.9.024.2050)

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Rel. interface Mod.screw 2CO 10A/24VDC/AgCdO/LED (58.32.9.024.2050)
Brand	FINDER
ETIM	EC001437
Nominal current	10 A
Type of switch contact	Single contact
Type of electric connection	Screw connection
Degree of protection (IP)	IP20
With LED indication	Yes
Voltage type for actuating	DC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0

Packing details

Packing level 1

8012823344881

Other Technical data

With detachable clamps	Yes
Drive, polarization	Polarized
Drive, switching attitude	Mono stable
With forced-guided contacts	No
Complete with socket	Yes
Rated control supply voltage at DC	24 V
Number of contacts as change-over contact	2

Downloads

Product picture

Description

Relay interface modules (A): 10 Nr.contacts: 2 Contacts configuration: CO Type of electric connection: Screw connection Coil version: DC Volt DC: 24 V. Polarized Mono stable Protection category: IP20 Options: Green LED+diode Accessories: Jumper link
