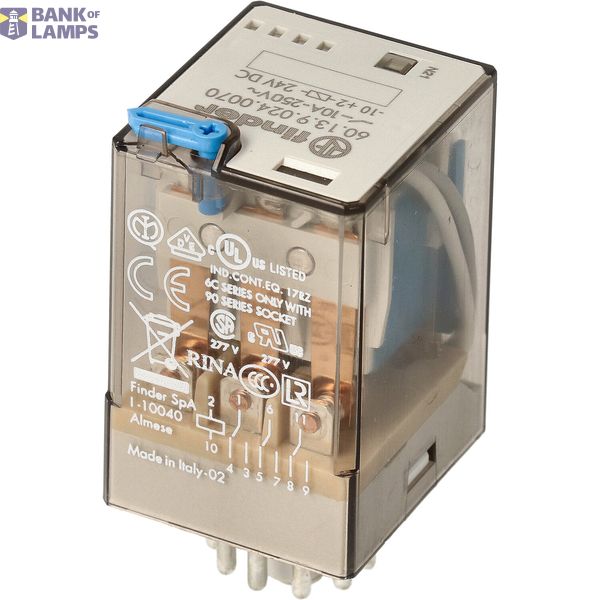

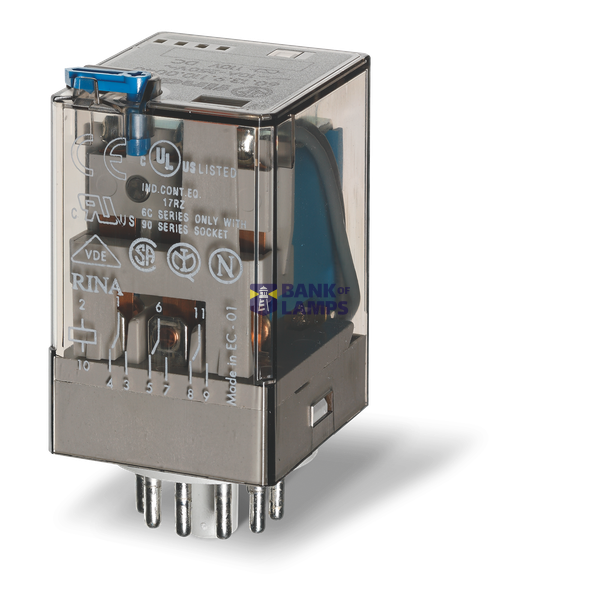

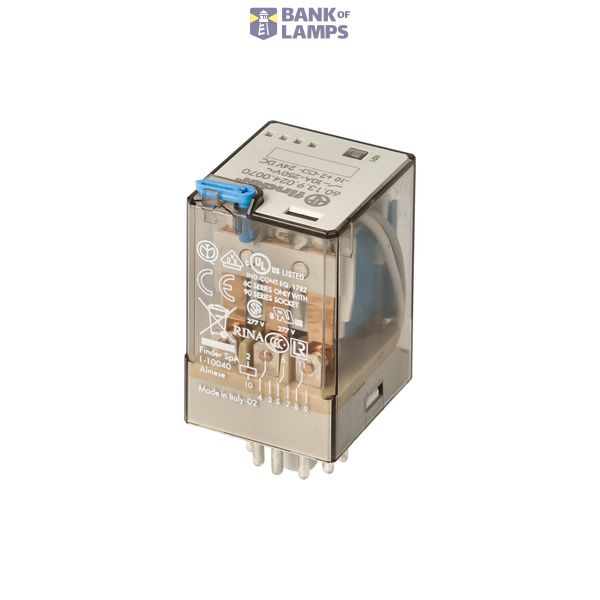

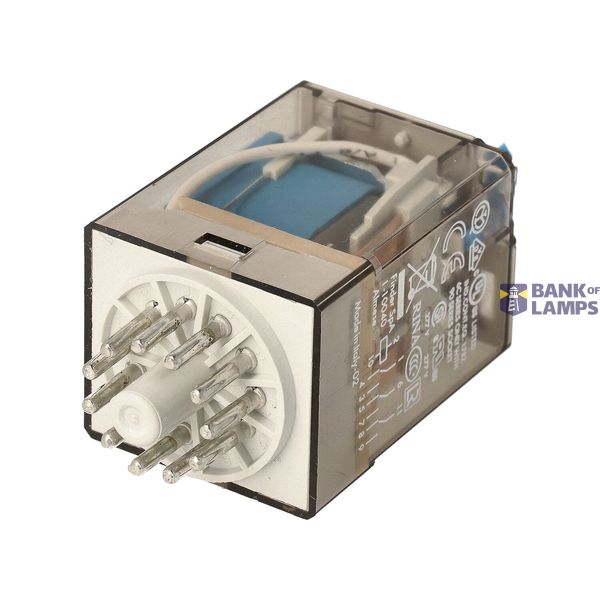

Rel. 3CO 10A/60VDC/Agni+Au/Test button/LED/diode (60.13.9.060.5070)
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Rel. 3CO 10A/60VDC/Agni+Au/Test button/LED/diode (60.13.9.060.5070) |
| Brand | FINDER |
| ETIM | EC001437 |
| Nominal current | 10 A |
| Type of switch contact | Single contact |
| Type of electric connection | Plug-in connection |
| Voltage type for actuating | DC |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
Packing details
| Packing level 1 | 8012823414409 |
| Packing level 2 | 8012823304397 |
Other Technical data
| Width | 32.5 mm |
| Height | 54.2 mm |
| Depth | 36.4 mm |
| Drive, polarization | Polarized |
| Drive, switching attitude | Mono stable |
| With forced-guided contacts | No |
| Complete with socket | No |
| Rated control supply voltage at DC | 60 V |
| Number of contacts as change-over contact | 3 |
Downloads
Description
General purpose relays (A): 10 Nr.contacts: 3 Contacts configuration: CO Contact Material: AgNi+Au Type of electric connection: Plug-in connection Coil version: DC Volt DC: 60 V. Polarized Mono stable Environmental Protection: RT I. Options: Lockable test button+LED+diode Accessories: Socket S.90
