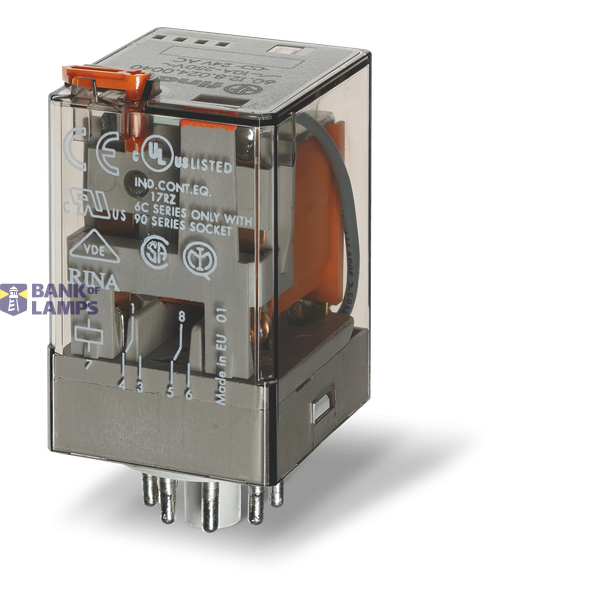

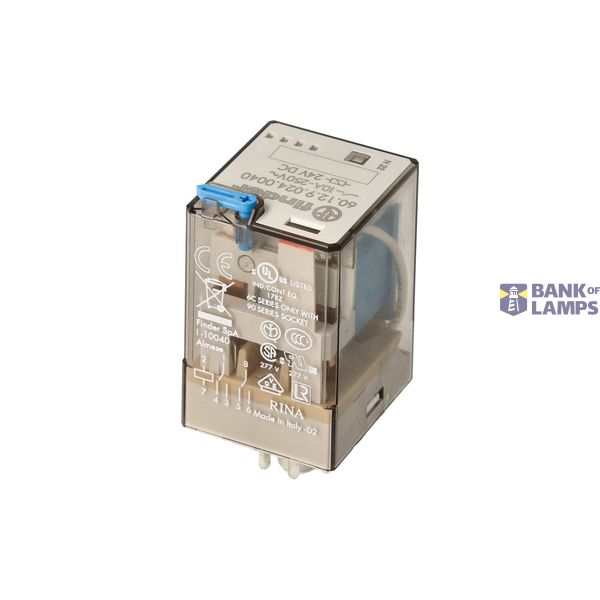

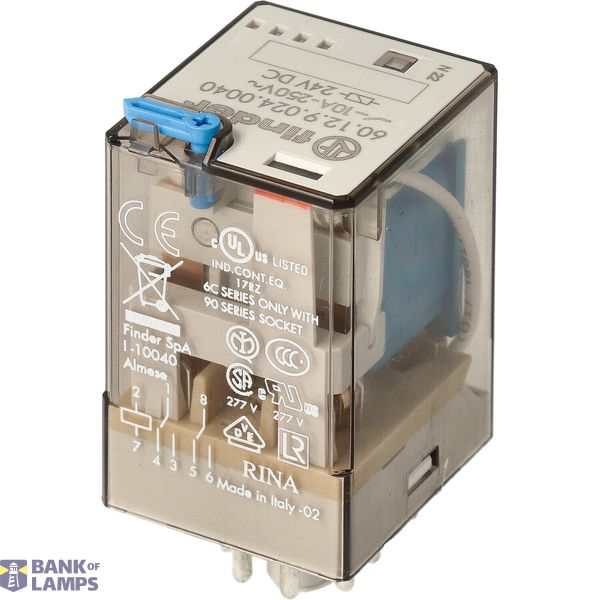

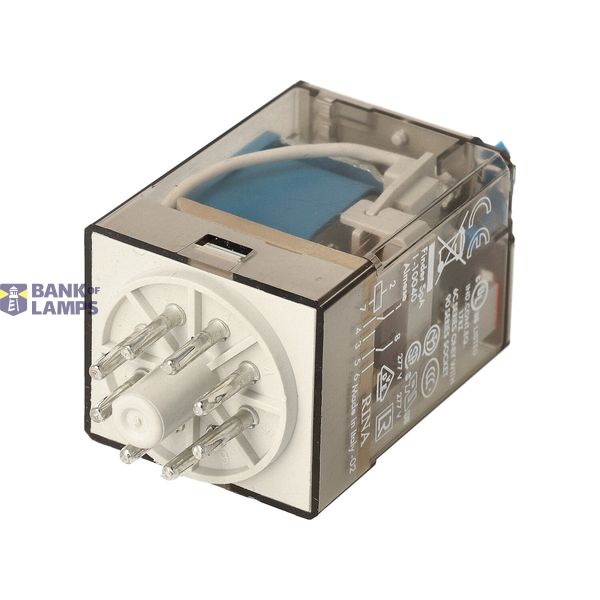

Rel. 2CO 6A/12VDC/Agni/Bifurcated contacts/Test button/Mech.ind (60.12.9.012.0240)
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Rel. 2CO 6A/12VDC/Agni/Bifurcated contacts/Test button/Mech.ind (60.12.9.012.0240) |
| Brand | FINDER |
| ETIM | EC001437 |
| Nominal current | 6 A |
| Type of switch contact | Double contact |
| Type of electric connection | Plug-in connection |
| Voltage type for actuating | DC |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
Packing details
| Packing level 1 | 8012823122915 |
Other Technical data
| Width | 32.5 mm |
| Height | 54.2 mm |
| Depth | 36.4 mm |
| Drive, polarization | Polarity free |
| Drive, switching attitude | Mono stable |
| With forced-guided contacts | No |
| Complete with socket | No |
| Rated control supply voltage at DC | 12 V |
| Number of contacts as change-over contact | 2 |
Downloads
Description
General purpose relays (A): 6 Nr.contacts: 2 Contacts configuration: CO Contact Material: AgNi Type of electric connection: Plug-in connection Coil version: DC Volt DC: 12 V. Polarity free Mono stable Environmental Protection: RT I. Options: Lockable test button+mechanical indicator Accessories: Socket S.90
