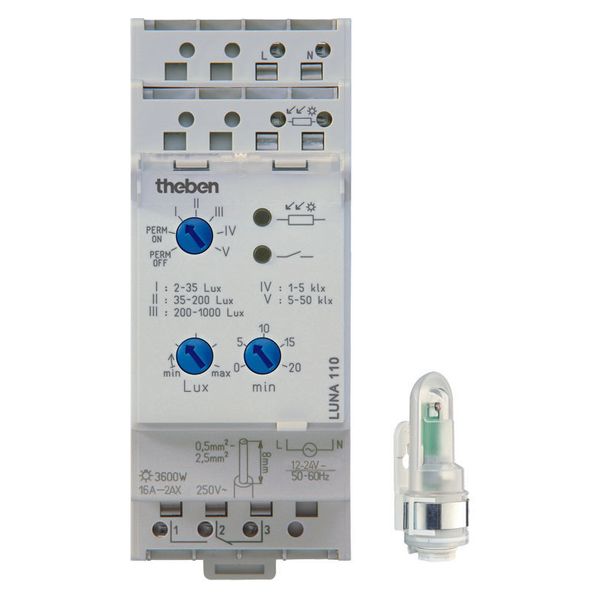

LUNA 110 AL 24V

Name: LUNA 110 AL 24V
Brand: Theben
Availability: Discontinued

Order only Discontinued Not Available

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	LUNA 110 AL 24V
Brand	Theben
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 5080 00
Mounting method	DIN rail
Rated voltage	24 V
Width in number of modular spacings	2
Degree of protection (IP)	IP20
Adjustment range brightness value	2-50000 lx

Packing details

Packing level 1

4003468111161, 4003468111161

Other Technical data

Built-in depth	69.2 mm
Rated frequency	50-60 Hz
Max. incandescent lamp load	1400 W
Max. conductor length light sensor	100 m
Max. load fluorescent lamp	1400 VA
Max. load fluorescent lamp (Duo circuit)	1400 VA
Max. load fluorescent lamp (parallel compensated)	1400 VA
With programmable overnight shutoff	No
Degree of protection (IP) light sensor	IP55
Push button input	No
Rated switch current	16 A
Protection class light sensor	II
Mounting method light sensor	Wall surface mounted

Description

Analoge schemerschakelaar, Externe lichtsensor meegeleverd, (Beschikbaar zijn vanaf juli 2011), Functie Continu UIT en Continu AAN op de potentiometer instelbaar, Testfunctie, ter controle van de installatie onafhankelijk van de ingestelde lichtsterkte, Helderheidsdrempel traploos instelbaar,
