Regelklep MIXIT 25-6.3 R NRV
Order only
Price (excl. VAT):
Price by request
EAN: 5713830256374
MPN: 99508818
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Regelklep MIXIT 25-6.3 R NRV |
| Brand | GRUNDFOS |
| Country of origin | DE |
| Harmonized System Code | 8481 8051 00 |
| Model | Ball control valve |

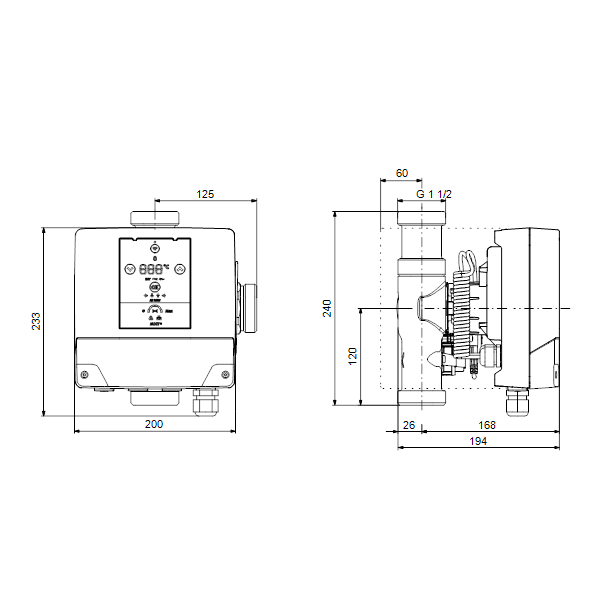

| Height | 194 mm |
| Material quality | Cast iron GGG 40.3 (GJS-400-18) |
| Length | 240 mm |
| Housing material | Cast iron |
| With filling- and draining valve | No |
| Suitable for glycol | Yes |
| Max. pressure difference | 250 kPa |
| Volume flow | 0.3 m³/h |
| Suitable for liquids | Yes |
| Type of pressure compensation | Electronic |
| Setting method through NFC (Near Field Communication) | No |
| Setting method directly on product | Yes |
| Setting method through hand programming tool | Yes |
| Setting method through PC-tool | No |
| Article compression class | PN 10 |
| Max. medium temperature (continuous) | 90 °C |
| Min. medium temperature (continuous) | 0 °C |
| Min. pressure difference | 0 kPa |
| Connection for control element | With adapter |
| Valve characteristic | Equal percentage |
| Volume flow preset | None |
| Housing material | Cast iron |
| With measuring nipples | No |
| Connections | External thread cylindrical BSPP-G (ISO 228-1) |
| Medium temperature (continuous) | 0 |
| Nominal diameter | DN 25 |
Packing details
| Packing level 1 | 5713830256374, 5713830256374 |
Downloads
Description
Pre-fabricated, complete mixing loop with integrated control functions designed for heating and cooling systems. Mainly suited for three-way installations in large buildings, such as schools, with no need for monitoring, pressure independence or balancing.
