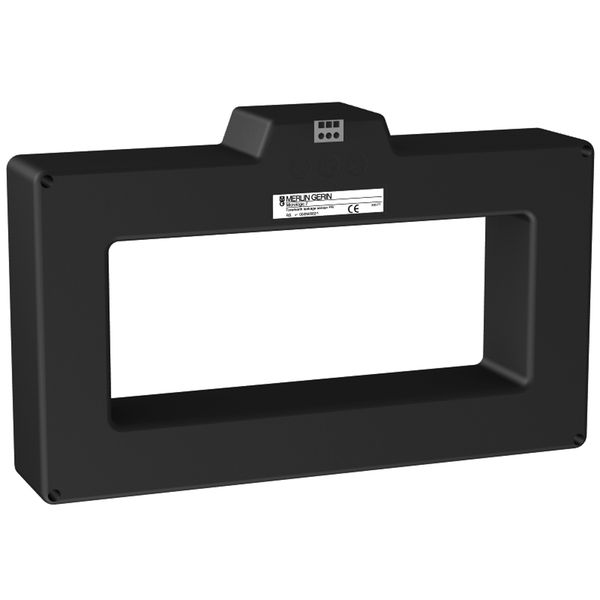

rectangular sensor for earth leakage protection, MasterPact NT, ComPact NS630b to NS1600, 1600A, inside dimensions 280mm x 115mm image 1

Sensor ComPact NS, 1600 A

Order only

EAN: 3303430335733

MPN: 33573

Package: 1

Pallet: 15

Price (excl. VAT)

1 367,97 €

per unit

MOQ: 1

EDT to our warehouse: By request

Price valid until 31.12.26 or while in stock

Technical Information

Item condition	New
Manufacture name	rectangular sensor for earth leakage protection, MasterPact NT, ComPact NS630b to NS1600, 1600A, inside dimensions 280mm x 115mm
Brand	Schneider Electric
Categories	Switch-Disconnector Accessories
Country of origin*	FR
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
ETIM	EC002498
Type of accessory/spare part	Other

Packing details

Packing level 1	3303430335733
Packing level 2	3303430335733

Downloads

Declaration EPD (Environmental Product Declaration) Technical manual

Description

This is a rectangular sensor for earth leakage protection for Compact NS 630b to 1600 devices equipped with Micrologic 7 A/P trip unit. The sensor is installed around the busbars (phases + neutral) to detect the zero phase sequence current required for the earth-leakage protection. The operational current is up to 1600 A. The inside dimensions are 280mm (W) x 115mm (H) x 71mm (D). The external dimensions are 381mm (W) x 233mm (H) x 71mm (D). The weight is 14 Kg. The sensor is installed in the switchboard. The sensor is provided with a cable for the connection to Compact NS circuit breaker.
