RECHTECK, 7,3 W, aluminium, on/off Extensions, L 485 B 125 H 250, SBS,
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
538,22 €
EAN: 4051859985495
MPN: 671081.004.1.04
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | RECHTECK, 7,3 W, aluminium, on/off Extensions, L 485 B 125 H 250, SBS, |
| Brand | RZB |
| Categories |
Emergency luminaires
|
| Country of origin | DE |
| Harmonized System Code | 9405 6180 00 |
| Width | 125 mm |
| Length | 485 mm |
| Height/depth | 250 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP44 |
| Colour temperature | 4000 K |
| Max. system power | 7.3 W |
Packing details
| Packing level 1 | 4051859985495, 4051859985495 |
Other Technical data
| Mounting method | Supporting bracket |
| Protection class | I |
| Function | Escape route signage |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Plug-in connection |
| Colour housing | Aluminium |
| Voltage type | AC |
| Power supply system | Peripheral (individual battery) |
| Type of control gear | LED operating device current-controlled |
| With remote control | No |
| Suitable for labelling type | Sticker |
| Type of indicator | Double-sided |
| Number of poles | 6 |
| Housing material | Aluminium |
| Number of lighting heads | 1 |
| Material cover | Plastic, opal |
| Battery quality | Other |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 4 |
| With remote switch connection | No |
| Monitoring equipment | Other |
| Recognition distance | 43 m |
| Nominal current | 30-33 |
| Constant light output (CLO) | No |
| With pictogram | Yes |
| Type of wiring | Ending |
| Luminous flux in standby mode | 85 lm |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | 5-25 °C |
| Light distributor | None |
| Nominal operation time | 3 h |
| Exchangeable control gear | Yes |
Downloads
Description

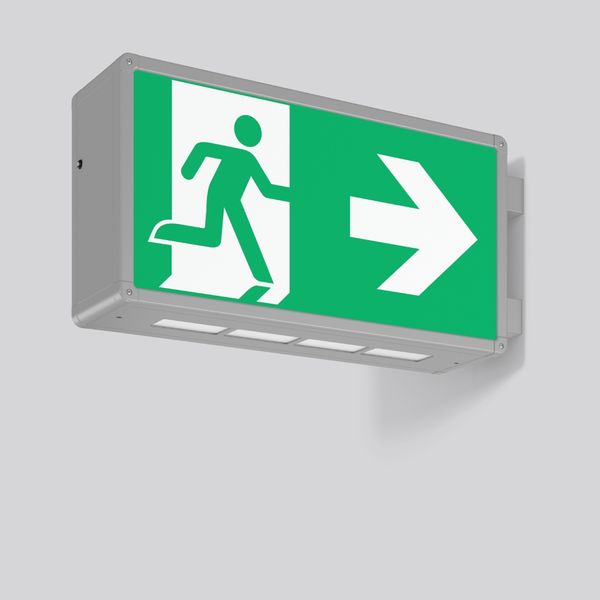

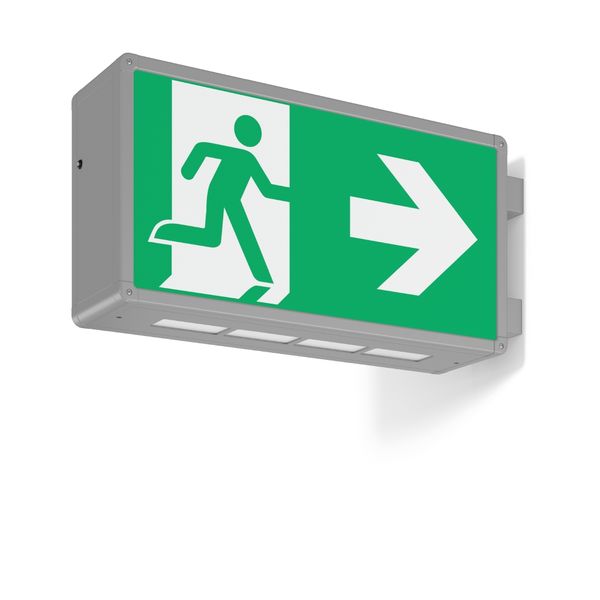

Rectangular wall extension luminaire in classic design. For escape route identification. Housing: aluminium, with plastic corner connectors. Display panels: plastic, opal, with motifs on one side/on both sides. Wall extension Please indicate legend number when placing your order!
