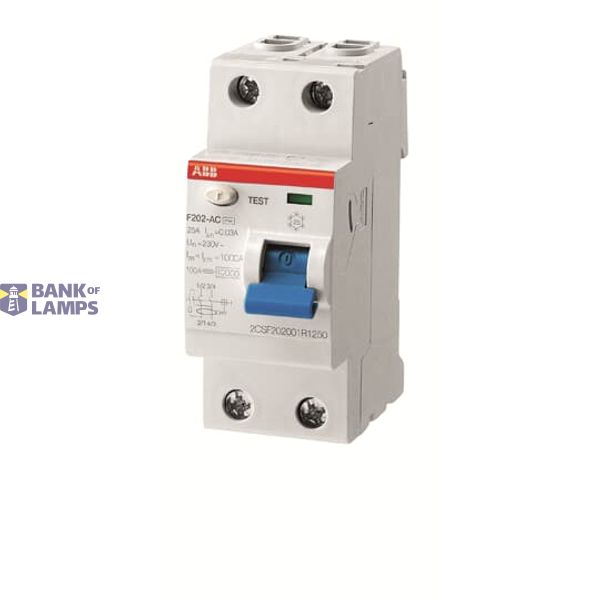

F202 A-40/0.3 CEBEC Residual Current Circuit Breaker 2P A type 300 mA
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | F202 A-40/0.3 CEBEC Residual Current Circuit Breaker 2P A type 300 mA |
| Brand | ABB |
| Harmonized System Code | 8536 3030 00 |
| ETIM | EC000003 |
| Voltage type | AC |
| Rated current | 25 A |
| Rated voltage | 230 V |
| Number of poles | 2 |
| Rated fault current | 300 A |
| Leakage current type | A |
| Selective protection | No |
| Short-circuit breaking capacity (Icw) | 1 kA |
| Short-time delayed tripping | No |
| Frequency | 50/60 Hz |
| Rated impulse withstand voltage Uimp | 4 kV |
Packing details
| Packing level 1 | 8012542818700 |
Other Technical data
| Mounting method | DIN rail |
| Built-in depth | 69 mm |
| Pollution degree | 2 |
| Width in number of modular spacings | 2 |
| Explosion-proof | No |
| Degree of protection (IP) | IP2X |
| Connectable conductor cross section solid-core | 25 mm² |
| Connectable conductor cross section multi-wired | 25 mm² |
| With interlocking device | Yes |
| Ambient temperature during operating | -25-55 °C |
| Additional equipment possible | Yes |
Downloads
Description
F202 A-25/0,3 CEBEC Residual Current Circuit Breaker
