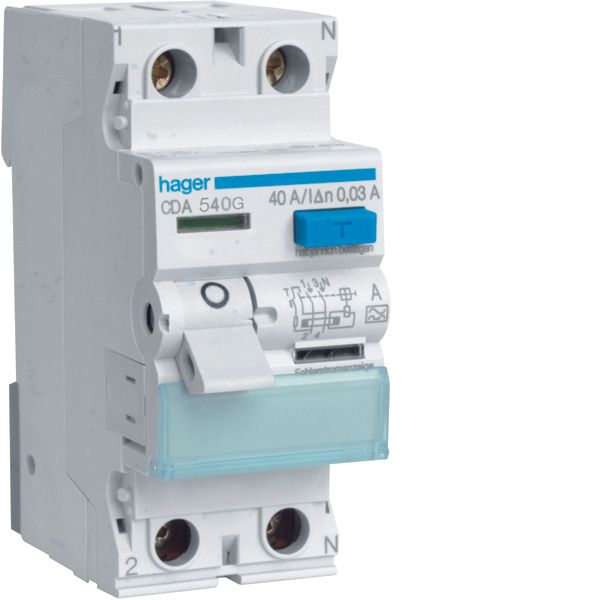

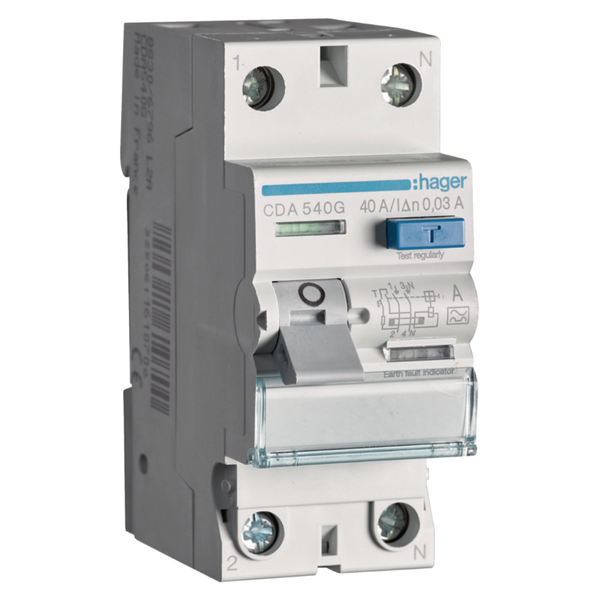

RCCB CDA540G 2P 40A 30mA type A
Order only
Price (excl. VAT):
119,75 €
EAN: 3250611610700
MPN: CDA540G
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | RCCB CDA540G 2P 40A 30mA type A |
| Brand | Hager |
| Categories |
RCCB - (Residual Current Breakers)
|
| Harmonized System Code | 8536 3030 00 |
| Voltage type | AC |
| Rated current | 40 A |
| Rated voltage | 230 V |
| Rated insulation voltage Ui | 500 V |
| Number of poles | 2 |
| Rated fault current | 0.03 A |
| Leakage current type | A |
| Selective protection | No |
| Short-circuit breaking capacity (Icw) | 6 kA |
| Surge current capacity | 0.25 kA |
| Short-time delayed tripping | No |
| Frequency | 50 Hz |
| Rated impulse withstand voltage Uimp | 4 kV |
Packing details
| Packing level 1 | 3250611610700 |
Other Technical data
| Mounting method | DIN rail |
| Built-in depth | 70 mm |
| Pollution degree | 2 |
| Width in number of modular spacings | 2 |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Connectable conductor cross section solid-core | 1-25 mm² |
| Connectable conductor cross section multi-wired | 1-16 mm² |
| With interlocking device | Yes |
| Ambient temperature during operating | -25-40 °C |
| Additional equipment possible | Yes |
