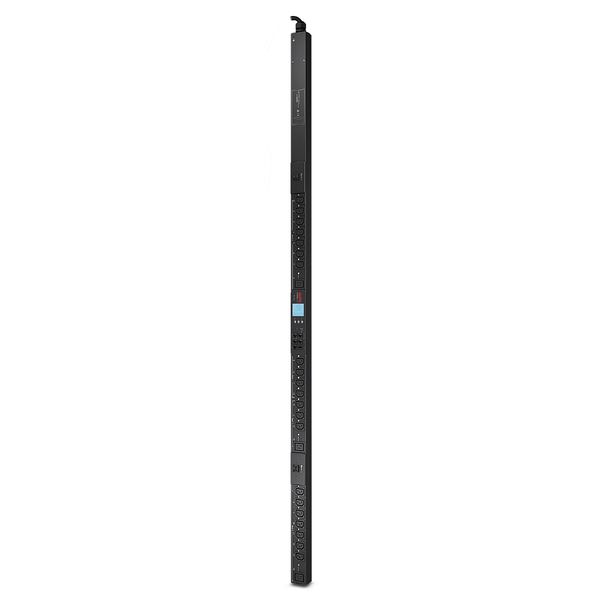

Rack PDU Schneider Electric Switched AP8953. It's a power distribution unit for rack-mounted IT and network equipment. Fits into data center ecosystems where controlled, remote energy management is needed. Mainly used in server racks to monitor and switch outlets individually.
Input: 200-240V AC, supports single-phase power. Output via (24) C13 outlets and (4) C19 sockets + IEC309 input plug. Maximum load capacity at 22kW, current throughput capped at 32A per line phase monitored.
Physical — vertical mount design, height approx. 70 inches (42U). Black chassis frame built for dense environments; robust build but relatively lightweight (~6 kg). Mounting brackets included but sometimes fiddly during setup adjustments.
Tech rundown: Rack-mountable PDU, 200-240V rated input voltage range., supports remote outlet-level switching., integrated Web/SNMP interface console., serial/USB configuration ports firmcoded onboard firmware control diagnostics., maximum temperature allowance during operation ~45°C ambient conditions (+/- manufacturer leeway of internal tolerance). Ethernet port for network comms pre-configured IP address resettable factory spec
