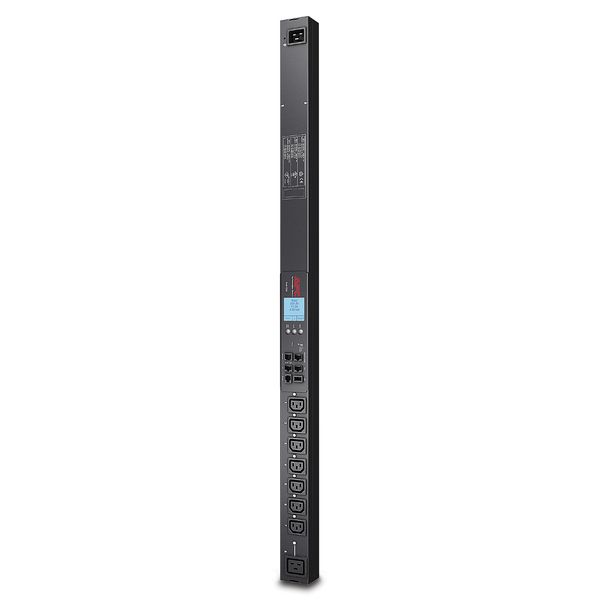

Power Distribution Unit , 20A, 208V, Black
Technical Information
| Item condition | New |
| Manufacture name | RACK PDU 2G SPINANA 0U 16A 230V AP8958 |
| Brand | Schneider Electric |
| Categories |
Plugs
Installation Boxes & Enclosures |
| ETIM | EC002762 |
Packing details
| Packing level 1 | 0731304277101 |
Description
Delivers reliable power distribution to IT equipment within a rack. Switched outlets allow remote control and load monitoring for efficient energy use. Metered functionality enhances operational visibility, ideal for dynamic data center environments.
Supports input loads up to 3.3 kVA or 20 A at 200/230 V (single-phase). Max output capacity reaches up to 11 kW. Rack-mountable, aligns with standard enclosure profiles. Network interface for remote management via web/SNMP integration.
Physical size fits 0U vertical mounting in most NetShelter configurations. Durable build, designed to sustain heavy usage cycles without degradation in power throughput quality.
Technical notes:
- Input voltage support: Single-phase, 200–230 V.
- Max current draw: 20 A line-rated.
- Total device wattage rating: Up to ~11 kW peak efficiency.
- Mount type: Vertical mount arrangement (0U form factor recommended).
- Management protocols supported: HTTP(S), SNMP (v1/v3 options), Telnet, SSH-ready.
- Outlet configuration type & count vary — refer datasheet "base".
