RAB 1L35-830 WPC HF/R MAS CL2 6K 700 ANT - LED bollard

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
Price by request
This price is valid while stock lasts
EAN: 9010299056597
MPN: 96632079
Package: 1
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name RAB 1L35-830 WPC HF/R MAS CL2 6K 700 ANT - LED bollard
Brand Thorn
Categories Street and park luminaires
Country of origin RS
Width 220 mm
Colour rendering index CRI 80-89
Length 173 mm
Height/depth 700 mm
Lamp type LED not exchangeable
Impact strength IK10
Nominal voltage 230-240 V
Degree of protection (IP) IP66
Colour temperature 3000 K
Max. system power 15 W
Rated luminous flux according to IEC 62722-2-1 658 lm

Packing details

Packing level 1 9010299056597

Other Technical data

Protection class II
Lamp holder None
With base plate No
Voltage type AC
With movement sensor No
Type of control gear LED operating device current-controlled
With light sensor No
Light outlet Direct
Light sharing Asymmetric
With light source Yes
Suitable for number of lamps 1
With control gear Yes
Colour of light White
Constant light output (CLO) No
IFTTT support available No
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Max. number of luminaires per miniature circuit breaker C16 33
Max. number of luminaires per miniature circuit breaker B16 20
Flickering value Pst LM 1
Colour temperature adjustable No
Exchangeable control gear Yes

Downloads

Declaration DOC CE (Declaration of conformity CE)

Description

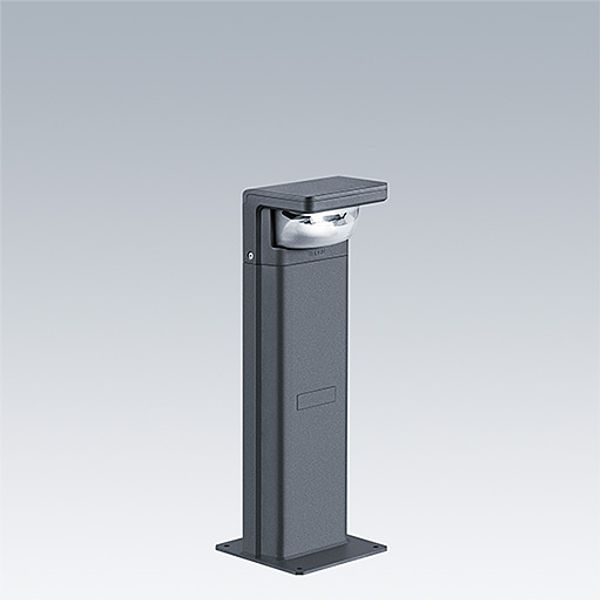

A flange mounted LED bollard of 700mm height, incorporating Thorn's Flat beam® technology. 1 LED driven at 350mA. LED driver included. Class II electrical, IP66, IK10. Housing: die-cast aluminium (EN44300, compatible with seaside installation), powder coated, textured anthracite (close to RAL7043). Bowl: UV stabilised polycarbonate, semi-frosted. Fasteners: stainless steel. Configured as motion detection master with concealed integral sensor and powerline control. Pre-set corridor function 20-100% for 5 minutes. Detection radius 5m. Complete with 3000K LED._x000D_ _x000D_ 6kV surge protection as standard. 200mm x 200mm fixing centres, bolts not included._x000D_ _x000D_ Dimensions: 173 x 220 x 700 mm_x000D_ Luminaire input power: 15 W_x000D_ Luminaire luminous flux: 658 lm_x000D_ Luminaire efficacy: 44 lm/W_x000D_ Weight: 7.37 kg
