QUASAR 10 LED 2WB 6W 3000K ANTHRACITE
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
117,33 €
EAN: 8018367612394
MPN: 303362
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | QUASAR 10 LED 2WB 6W 3000K ANTHRACITE |
| Brand | Performance in Lighting |
| Categories |
Wall and ceiling luminaires
|
| Country of origin | IT |
| Harmonized System Code | 9405 1190 00 |

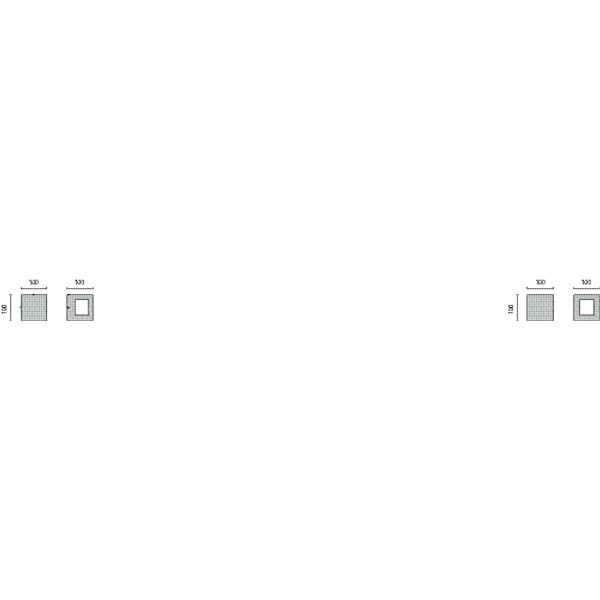

| Width | 100 mm |
| Colour housing | Anthracite |
| Colour rendering index CRI | 80-89 |
| Length | 100 mm |
| Height/depth | 100 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK02 |
| Nominal voltage | 220 V |
| Beam angle | Open beam/diffuse |
| Colour temperature | 3000 K |
| Max. system power | 6 W |
Packing details
| Packing level 1 | 8018367612394, 8018367612394 |
Other Technical data
| Protection class | I |
| Lamp holder | Other |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 6 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Glass opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG0 |
| Rated ambient temperature according to IEC62722-2-1 | -10 °C |
| Filament test according to IEC 60695-2-11 | None |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Light distributor | Other |
| Dimming DSI | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 45 |
| Max. number of luminaires per miniature circuit breaker B16 | 27 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 92.4 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 88.5 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 82.3 % |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | No |
| Surface protection housing | Lacquered |
| Power factor | 0.9 |
Downloads
Description
Wandarmatuur voor binnen en buiten, bestaande uit: Behuizing van gelakt spuitgietaluminium. Ingebouwde platte en transparante glazen afscherming. Pakking van polymeer. Schroeven en borging van roestvrij staal. Armatuur inclusief driver.
