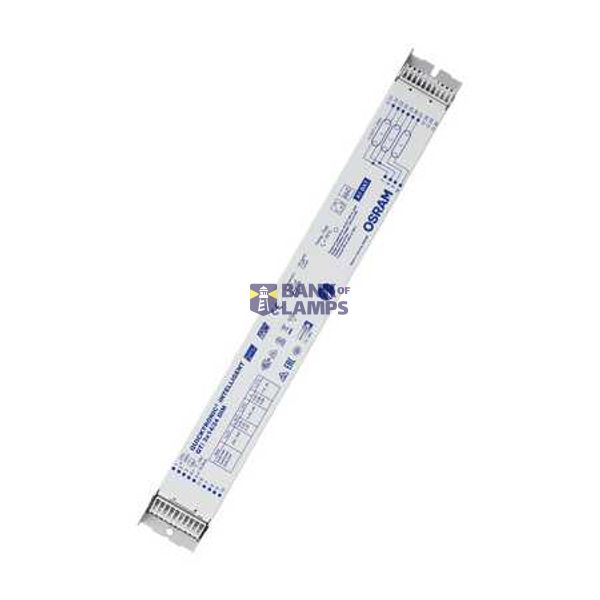

QTI 3X14/24/220-240 DIM VS20 OSRAM
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | QTI 3X14/24/220-240 DIM VS20 OSRAM |
| Brand | OSRAM |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8504 1080 00 |
| ETIM | EC001497 |
| Width | 40 mm |
| Model | Electronic |
| Suitable for lamp power | 14-24 W |
| Length | 360 mm |
| For lamp type TC-L | Yes |
| For lamp type T7 | No |
| For lamp type T16 | Yes |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| For lamp type T16-R | Yes |
| For lamp type T38 | No |
| For lamp type TC-F | Yes |
| Suitable for lamp power (3 lamps) | 14-24 W |
| Suitable for number of lamps | 3 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | Yes |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
Description
CBP_02.00 Product family benefits, all [calc.]: Same luminous flux with direct and alternating current. Perfect lamp start for applications with motion sensors. Dimming of amalgam lamps without flickering or reduced lifespan. Very high efficiency thanks to cut-off technology. Automatic restart after lamp replacement. ECGs comply with MINERGIE standard due to very low standby consumption. Configurable emergency power characteristics. CBP_01.00 Product family features, all [calc.]: Control via 1…10 V interface. Supply voltage: 220…240 V. Line frequency: 0 Hz | 50 Hz | 60 Hz. Line voltage: 198…264 V. Dimming range: 1…100 % luminous flux. Lamp start: within 0.6 s. Lifetime: > 100,000 h (for T = 65 °C at Tc). Automatic shutdown of defective lamps and at end of life (EoL T.2). Energy Efficiency Index EEI: A1 BAT. Overtemperature protection: Thermal management at high tc temperatures. Safety: to EN 61347-2-3. CBP_03.00 Areas of applicat, all [calc.]: Suitable for emergency installations. Industry. Open-plan offices, corridors and storage rooms. Public buildings. Suitable for luminaires of protection class I.
