PXLED 15L N 757 GC T0 E05
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | PXLED 15L N 757 GC T0 E05 |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 465 mm |
| Length | 607 mm |
| Height/depth | 325 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 110-277 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 5700 K |
| Rated luminous flux according to IEC 62722-2-1 | 16.158 lm |
Packing details
| Packing level 1 | 4251958117371 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Lamp holder | None |
| Conductor cross section | 6 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC/DC |
| Suitable for lamp power | 147 W |
| Type of control gear | LED operating device current-controlled |
| Adjustable | Yes |
| Number of poles | 6 |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| For Ex-zone gas | 1, 2 |
| With light source | Yes |
| Suitable for number of lamps | 3 |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -50-55 °C |
| Light distributor | Focal lens |
| Max. number of luminaires per miniature circuit breaker C16 | 20 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Exchangeable control gear | No |
| Power factor | 0.95 |
Description

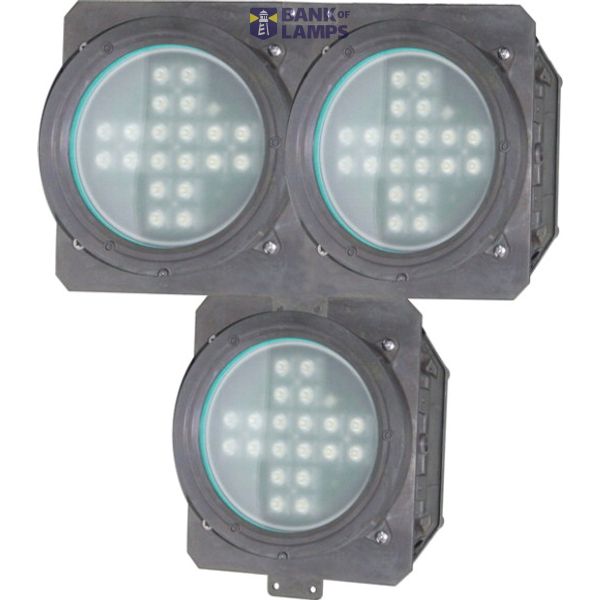

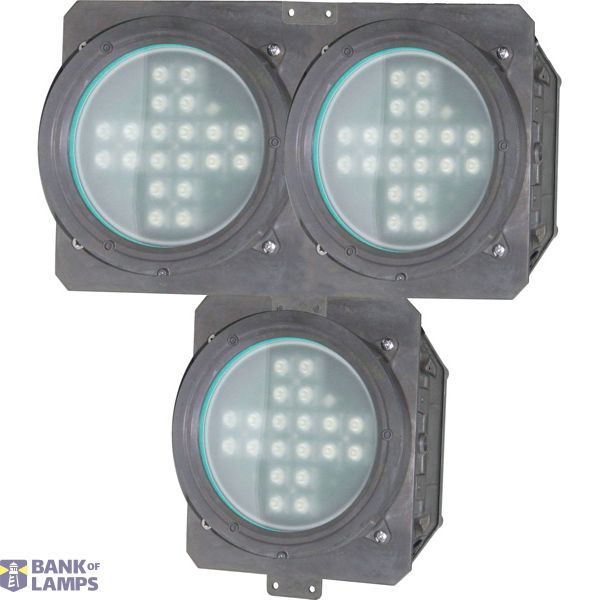

Ex-LED floodlight for Zone 1/21PXLED 15L B 757 C E05 narrow beam 147 W, 2 x M25 threaded plug
