PVM9LR1/UNV1
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | PVM9LR1/UNV1 |
| Brand | EATON |
| ETIM | EC002892 |
| Width | 382 mm |
| Colour housing | Grey |
| Colour rendering index CRI | 80-89 |
| Length | 334 mm |
| Height/depth | 274 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 100-277 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Wide beam 41-80° |
| Colour temperature | 5000 K |
| Max. system power | 74 W |
Packing details
| Packing level 1 | 3066227642536 |
Other Technical data
| Protection class | I |
| Outer diameter | 382 mm |
| Lamp holder | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Cable |
| Voltage type | AC/DC |
| With movement sensor | No |
| Type of grid | Other |
| Type of control gear | Electronic ballast |
| Built-in width | 295 mm |
| With light sensor | No |
| Suitable for suspended mounting | Yes |
| Number of poles | 3 |
| Housing material | Aluminium |
| Built-in length | 295 mm |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric/asymmetric |
| Material cover | Glass transparent |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for wall mounting | Yes |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L80/B10 at 25 °C | 200 h |
| Photobiological safety according to EN 62471 | Other |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -40-65 °C |
| Filament test according to IEC 60695-2-11 | None |
| Dimming 0-10 V | Yes |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Other |
| Dimming depending on control gear | No |
| Dimming DSI | No |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 230 mm |
| Surface protection housing | Lacquered |
| Power factor | 0.9 |
Description

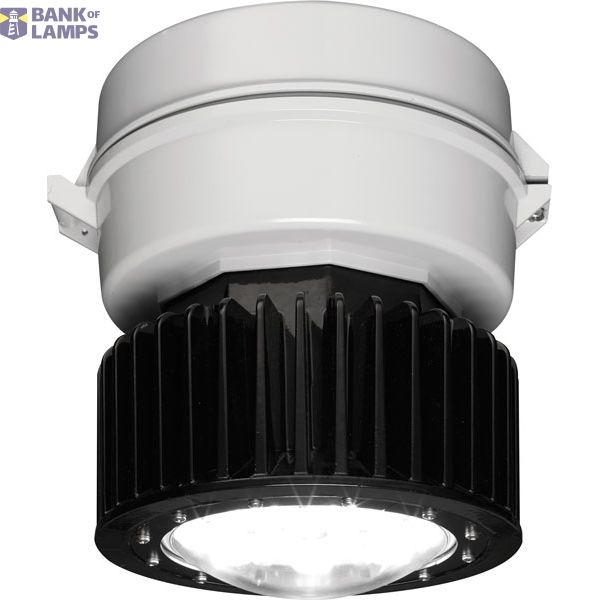

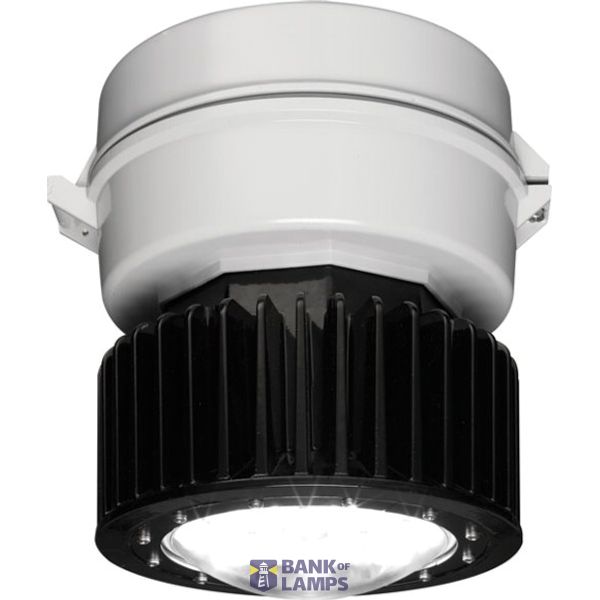

Floodlight for industrial application with High Power LEDsPVM LED 9L, type I, Enclosure type 1, only lamp module with LEDs, without top mounting module, please order separately
