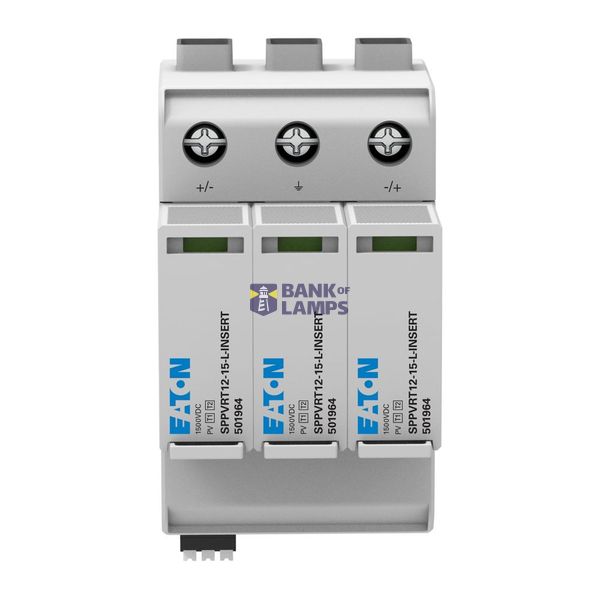

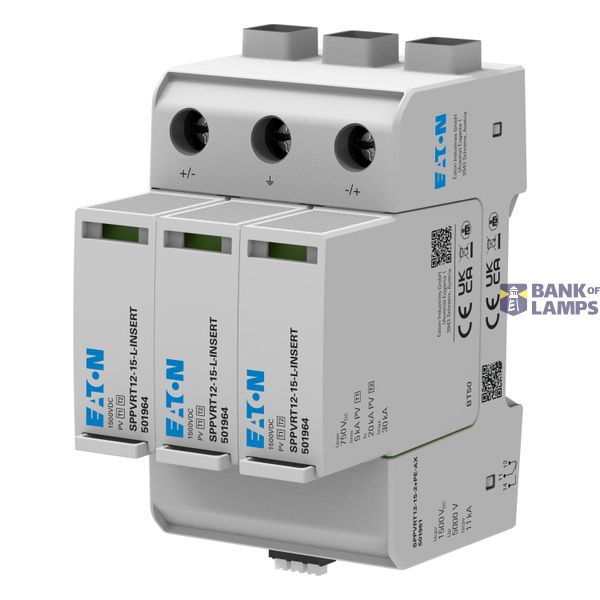

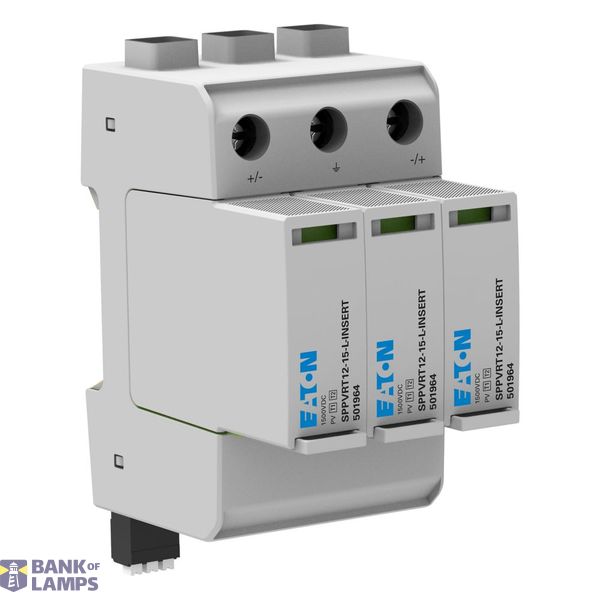

PV-SPD, 1500V, class 1 and 2 combined tested with AUX contact
Order only
EAN: 9010653063018
MPN: EP-501961
Package: 1
No pricing modes available.
Technical Information
| Item condition | New |
| Manufacture name | PV-SPD, 1500V, class 1 and 2 combined tested with AUX contact |
| Brand | EATON |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin* | SI |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3090 00 |
| ETIM | EC000381 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Lightning impulse current (10/350 µs) | 5 kA |
| Voltage protection level | 5 kV |
| Nominal discharge surge current (8/20) | 20 kA |
| Nominal voltage DC | 1500 V |
| Category type 1 | Yes |
| Voltage protection level L-N | 5 kV |
| Max. continuous voltage DC | 1500 V |
| Degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 9010653063018 |
Other Technical data
| With remote signalling contact | Yes |
| Number of conductors (without earthing) | 2 |
| Construction size | 3 modular spacing |
| Suitable for outdoor use | No |
| Exhausting | No |
| Signalling at the device | Optic |
| Integrated backup fuse | No |
| Max. conductor cross section solid (solid, stranded) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) | 25 mm² |
| Voltage protection level (DC+ - DC-) | 5 kV |
| Voltage protection level (DC+/DC- - PE) | 5 kV |
| Specific energy (W/R) | 6.25 kJ/Ohm |
| System configuration DC | Yes |
| System configuration IT | No |
| System configuration TN | No |
| System configuration TN-C | No |
| System configuration TN-S | No |
| System configuration TT | No |
| System configuration other | No |
| System configuration TN-C-S | No |
Downloads
Description
SPD for the protection of PV installations on the DC side, to be used in accordance with IEC/EN 60364-5-53
