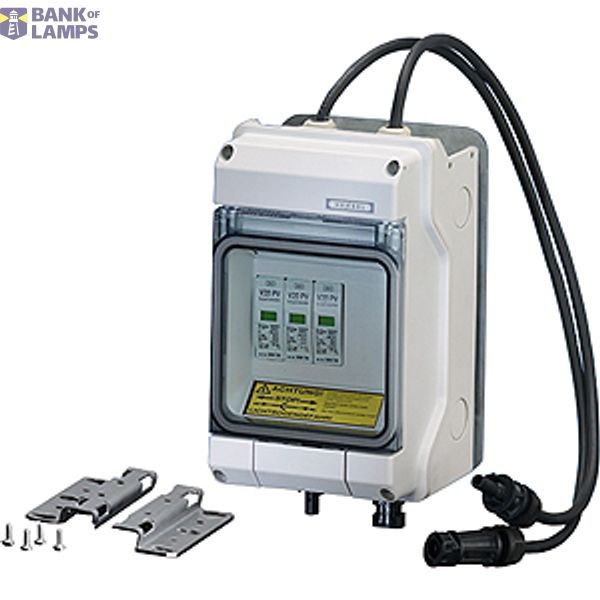

PV- generator junction box with surge protection device 2xPV-String on 1x inverter input (61001074)

Name: PV- generator junction box with surge protection device 2xPV-String on 1x inverter input (KV PV 1211)
Brand: HENSEL
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	PV- generator junction box with surge protection device 2xPV-String on 1x inverter input (KV PV 1211)
Brand	HENSEL
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 1000 00
ETIM	EC002600
Halogen free	Yes
Equipped with	Other
Rated insulation voltage Ui	1000 V
Sealable	No
Weatherproof	Yes
Degree of protection (IP)	IP65
Inlet from the rear	No

Packing details

Packing level 1

4012591115199

Other Technical data

Mounting method	Wall-/ceiling mounting
Colour	Grey

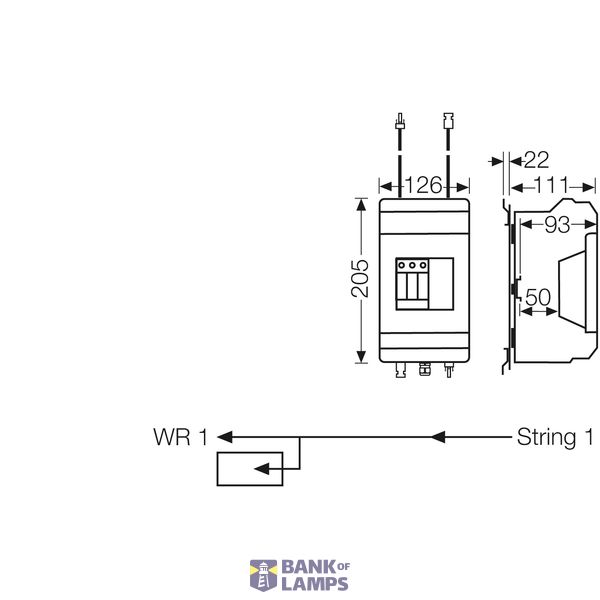

Width	126 mm
Depth	111 mm
Shape	Other
Surface protection	Untreated
Length	205 mm
Circuit integrity	None
Operating temperature	-5-40 °C
Material	Plastic
Explosion-tested version	No
Cover attachment	Hinged
With screening	No
For Ex-zone gas	None
Tackable	No
Type of housing feed-through	Other
For Ex-Zone dust	None
Cover model	Other
Castable	No
With casting compound	No

Description

Generator junction box for PV systems up to 1000 V d.c. according to IEC 61439-1, completely assembled and ready for connection. Enclosures made of high quality thermoplastics are totally insulated, degree of protection IP 65. As required, the KV PV generator junction boxes are equipped with surge arresters or generator disconnect switches. They are suitable for unprotected outdoor installation and are UV-resistant. With stainless steel mounting plate for wall and post installations. PV generator junction box with DC surge arrester type 2. 1 x PV string on 1 x inverter input. The plug connectors are compatible with MC4. With hinged flap for tool operation. Lock for lid and sealing set in accessories.
