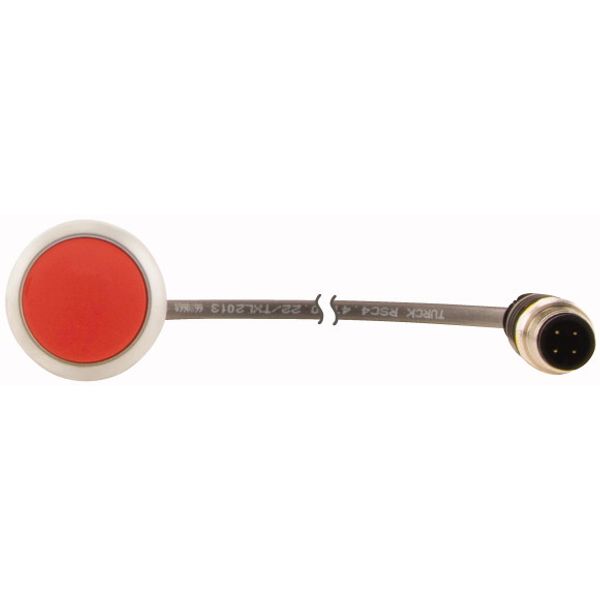

C22-DR-R-K01-P3 Pushbutton, flat, maintained, red, 1 N/C, with cable 0.5m and M12A plug
Order only
Price (excl. VAT):
34,05 €
EAN: 4015081764785
MPN: 181611
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | C22-DR-R-K01-P3 Pushbutton, flat, maintained, red, 1 N/C, with cable 0.5m and M12A plug |
| Brand | EATON |
| Categories |
Push Buttons
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5011 00 |
| Colour button | Red |
| Number of command positions | 1 |
| Type of button | Flat |
| Degree of protection (IP) | IP67/IP69K |
Packing details
| Packing level 1 | 4015081764785 |
Other Technical data
| Hole diameter | 22.5 mm |
| Suitable for illumination | No |
| Spring-return | No |
| Colour front ring | Titanium |
| Type of electric connection | Other |
| Width opening | 0 mm |
| Height opening | 0 mm |
| Material front ring | Plastic |
| With front ring | No |
| Transparent | No |
| Construction type lens | Round |
| Supply voltage lamp | 0 V |
| Switching function latching | No |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | 12 |
Description
Pushbutton, RMQ compact solution, Complete unit, Design: Flat, maintained, Connection type: Cable (black) with M12A plug, 4 pole, Cable Length: 0.5 m, button plate: red, Button plate Blank, Name: None, Degree of Protection: IP66, IP67, IP69K (front), IP65 (on rear), Bezel: titanium, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660
