EATON

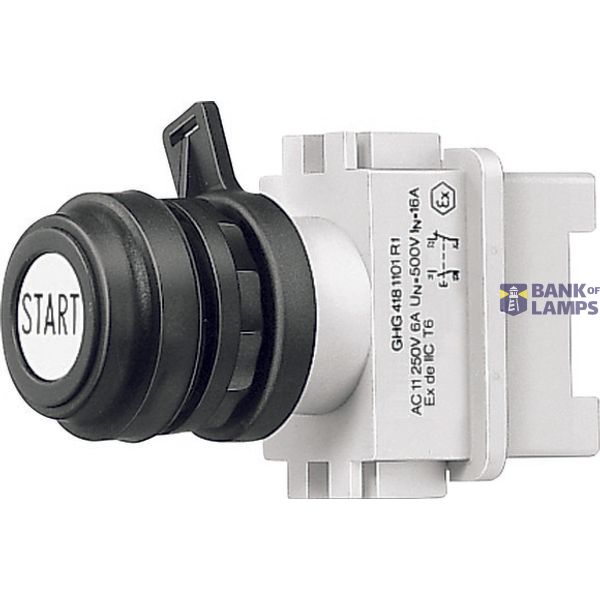

PUSHBUTTON ER 2NC 0-I-STOP-START

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name PUSHBUTTON ER 2NC 0-I-STOP-START
Brand EATON
ETIM EC001028
Colour button White
Number of command positions 1
Type of button Flat
Degree of protection (IP) IP23

Packing details

Packing level 1 4250217409189

Other Technical data

Hole diameter 31.5 mm
Suitable for illumination No
Spring-return Yes
Colour front ring Black
Type of electric connection Screw connection
Width opening 32.7 mm
Height opening 32.7 mm
Material front ring Plastic
With front ring Yes
Construction type lens Round
Supply voltage lamp 0 V
Switching function latching No
Number of contacts as normally closed contact 2
Number of contacts as normally open contact 0
Number of contacts as change-over contact 0
Degree of protection (NEMA) Other

Description

418 811, pushbutton, 2 NO, silver contacts0
