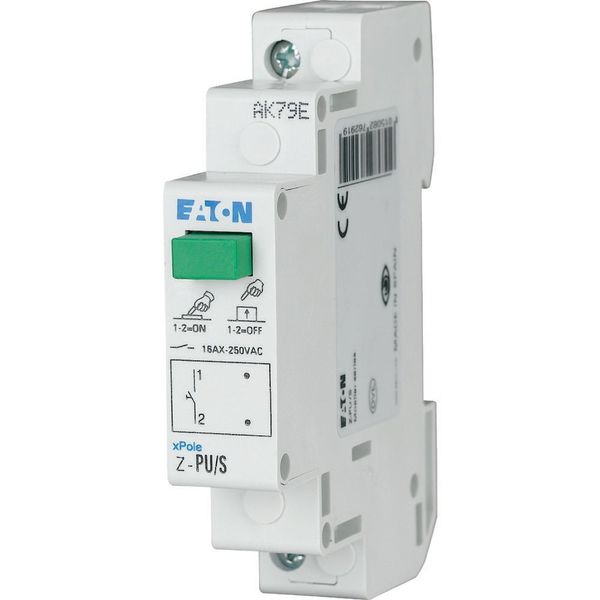

Z-PU/S Pushbutton, 250 V, 16A, 1 N/O, 1HP

In stock: No Vendor stock: Yes Minimal order quantity: 2

Price (excl. VAT):

8,17 €

This price is valid until 24.12.25

Subtotal: 16,34 € MOQ: 2

EAN: 4015082762919

MPN: 276291

Package: 1

Box: 2

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Z-PU/S Pushbutton, 250 V, 16A, 1 N/O, 1HP
Brand	EATON
Categories	Push Buttons and Control
Country of origin	RO
Harmonized System Code	8536 5011 00
Voltage type	AC
Switching current	16 A
Switching voltage	250 V
Degree of protection (IP)	IP40
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	1
Number of contacts as change-over contact	0

Packing details

Packing level 1	4015082762919
Packing level 2	9007912419556
Packing level 3	9007912419563

Other Technical data

Colour button	Green
With signal lamp	No
Built-in depth	60 mm
Max. lamp power	0 W
Lamp type	LED
Width in number of modular spacings	1
Colour calotte	Other
Lamp socket	Other
Lamp voltage	0 V

Description

Pushbutton, function: 1 N/O, rated operational current 16A, rated operating voltage 250 V AC, color of pushbutton green, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC/EN 60669, VDE 0632
