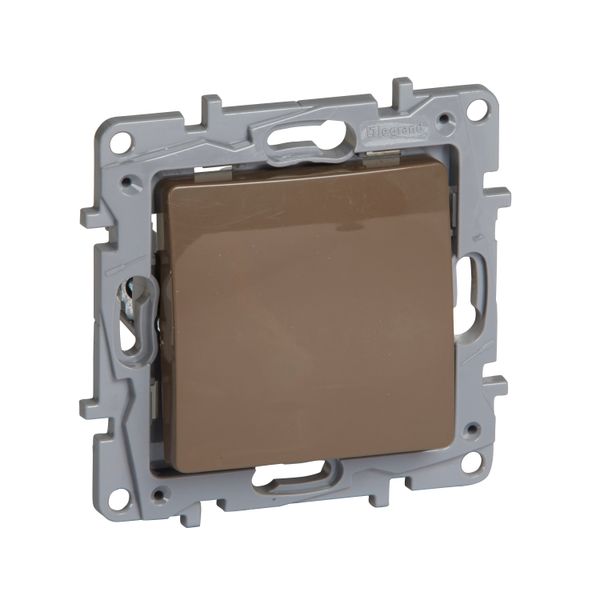

Push Button 6 A, 2P, 250 V, IP31, 2 Modules, 6 A, 75.8 mm, NO/NC
Order only
EAN: 3414970745804
MPN: 764722
Package: 20
Box: 100
Pallet: 500
Price (excl. VAT)
6,28 €
per pcs
MOQ: 1
EDT to our warehouse: 2-4 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | PUSH-BUTTON 6A NO NC LIGHTING CLAWS BROWN |
| Brand | Legrand |
| Categories |
Switches
|
| Country of origin* | EG |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| ETIM | EC000029 |
| Nominal voltage | 250 V |
| Method of operation | Push button |
| Model | Other |
| Rated current | 6 A |
| Number of poles | 2 |
| With lighting | Yes |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
Packing details
| Packing level 1 | 3414970745811 |
| Packing level 2 | 3414971079007 |
| Packing level 3 | 3414970745804 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Assembly arrangement | Basic element |
| Colour | Brown |
| Halogen free | Yes |
| Connection type | Push-in clamp |
| Imprint | None |
| Surface protection | Untreated |
| With signal lamp | Yes |
| Label space/information surface | No |
| Feedback-signal contact | No |
| Material quality | Thermoplastic |
| Material | Plastic |
| Type of fastening | Mounting with claw and screw |
| Number of rockers | 1 |
| Impact strength | IK04 |
| Transparent | No |
| Surface finishing | Glossy |
| Suitable for degree of protection (IP) | IP31 |
| Number of contacts as change-over contact | 0 |
| Device width | 75.8 mm |
| Device height | 75.8 mm |
| Device depth | 47 mm |
| Number of modules (module system) | 2 |
| IFTTT support available | No |
| Min. depth of built-in installation box | 40 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Contactless type | No |
| Anti-bacterial treatment | No |
