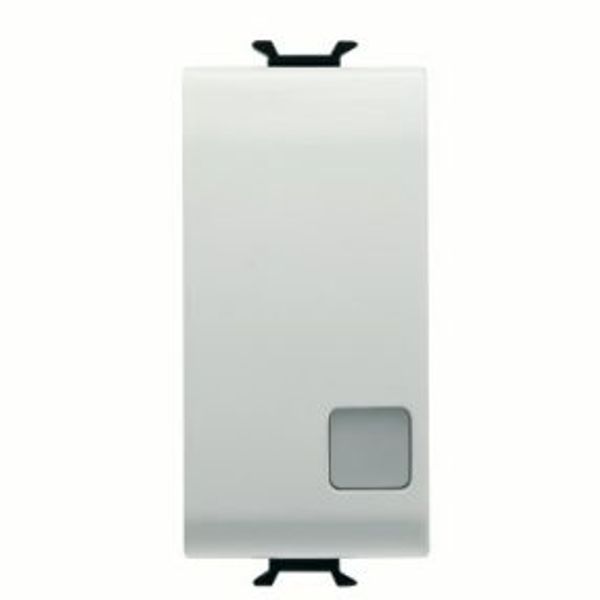

Push Button 2P 250V ac, No 16a Illuminable, With Replaceable Neutral Lens, 1 Module, Satin White, Chorusmart
Order only
EAN: 8034035074929
MPN: GW15135
Package: 1
Box: 24
Pallet: 2952
Price (excl. VAT)
8,88 €
per unit
MOQ: 12
EDT to our warehouse: 4-6 weeks
Price valid until 31.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | PUSH-BUTTON 2P 250V ac - NO 16A ILLUMINABLE - WITH REPLACEABLE NEUTRAL LENS - 1 MODULE - SATIN WHITE - CHORUSMART |
| Brand | GEWISS |
| Categories |
Switches
|
| Harmonized System Code | 8536 5080 00 |
| ETIM | EC000029 |
| Nominal voltage | 250 V |
| Method of operation | Push button/touch control button |
| Model | Single push button |
| Rated current | 16 A |
| Number of poles | 2 |
| With lighting | Yes |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
Packing details
| Packing level 1 | 8034035074929 |
| Packing level 2 | 8034035074929 |
| Packing level 3 | 8034035459054 |
| Packing level 4 | 8034035074929 |
Other Technical data
| Mounting method | Module frame |
| Assembly arrangement | Modular device for domestic switching devices |
| Colour | Beige |
| Halogen free | No |
| Connection type | Screwed terminal |
| Imprint | None |
| Surface protection | Untreated |
| With signal lamp | No |
| Label space/information surface | No |
| Feedback-signal contact | No |
| Material quality | Thermoplastic |
| Material | Plastic |
| Type of fastening | Engage (snap) |
| Number of rockers | 1 |
| RAL-number (similar) | 9003 |
| With light source | No |
| Transparent | No |
| Surface finishing | Matt |
| Suitable for degree of protection (IP) | IP41 |
| Number of contacts as change-over contact | 0 |
| Device width | 22 mm |
| Device height | 44 mm |
| Device depth | 36 mm |
| Number of modules (module system) | 1 |
| IFTTT support available | No |
| Min. depth of built-in installation box | 35 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Number of revolving contacts | 0 |
| Contactless type | No |
| Anti-bacterial treatment | No |
Downloads
Description
CHORUSMART - Domestic range Satin white modular devices - The CHORUSMART modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements.Colours and finishes: satin white, distinctive and elegant.Unlimited functions in reduced spaces: the CHORUSMART range consists of rocker button keys with ½, 1, 2 and 3 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.
