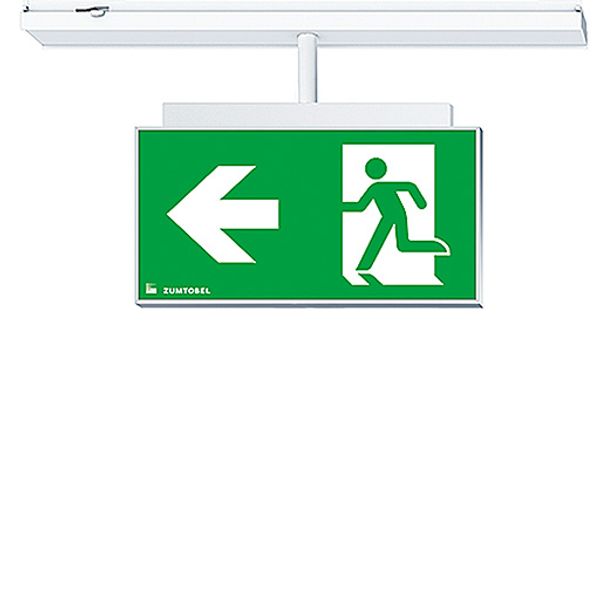

PURESIGN 150 P TEC-GP ECD WH - Escape sign luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 5037319374992
MPN: 42186044
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | PURESIGN 150 P TEC-GP ECD WH - Escape sign luminaire |
| Brand | Zumtobel |
| Categories |
Emergency luminaires
|
| Country of origin | RS |
| Harmonized System Code | 9405 9900 00 |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Max. system power | 4.7 W |
| Rated luminous flux according to IEC 62722-2-1 | 60 lm |
Packing details
| Packing level 1 | 5037319374992, 5037319374992 |
Other Technical data
| Protection class | I |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Other |
| Colour housing | White |
| Voltage type | AC |
| Housing material | Steel |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| Constant light output (CLO) | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Max. number of luminaires per miniature circuit breaker C16 | 120 |
| Max. number of luminaires per miniature circuit breaker B16 | 60 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Exchangeable control gear | No |
| Power factor | 0.72 |
Downloads
Videos
Description

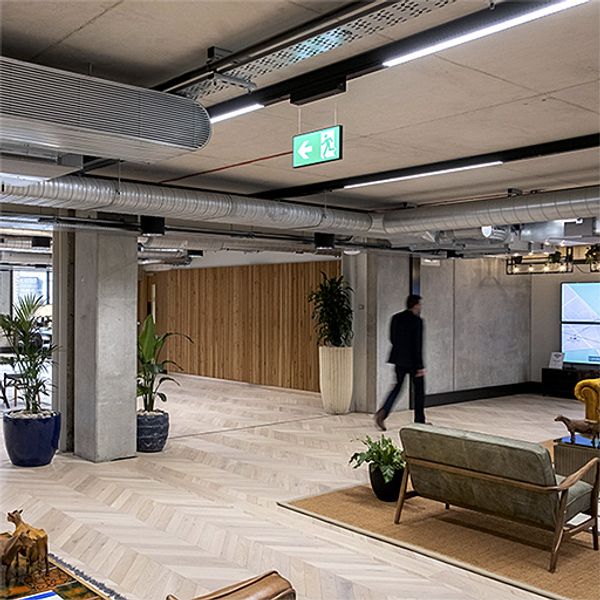

LED Escape sign luminaire; Luminaire for central emergency light supply, for single luminaire monitoring via DALI (DALI-2 certified), settable emergency light level; Can be connected to the TECTON continuous-row system without tools; possible to rotate luminaire through 90° and to lock it in position; housing made of sheet steel, white (RAL 9016), coated; NFC interface for maintenance via PROset Pen (article no.: 22170290) or PROset app; luminaire easy to install. Zero maintenance thanks to LED technology; plug-in terminals 2.5 mm², through-wiring possible for 1.5 mm²; Luminaire input power: 4.7 W, protection class: IP20, class of protection: SC1; Impact strength: IK03; non-maintained and maintained mode possible, Maintained and non-maintained mode: -40 °C to +45 °C; power supply: 220-240 V AC (+/- 10 %) 50-60 Hz; 176-280 V DC, ; dimensions of luminaire including escape sign: ; weight: 1.2 kg; Luminaire wired with halogen-free leads; max. line length from emergency power source to last luminaire: 300 m; ;
