PURESIGN 150 P MRW ELP WH - Escape sign luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 9010299213389
MPN: 42934375
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | PURESIGN 150 P MRW ELP WH - Escape sign luminaire |
| Brand | Zumtobel |
| Categories |
Emergency luminaires
|
| Country of origin | RS |
| Harmonized System Code | 9405 9900 00 |
| Width | 135 mm |
| Length | 232 mm |
| Height/depth | 54 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 48 V |
| Degree of protection (IP) | IP40 |
| Max. system power | 3.9 W |
| Rated luminous flux according to IEC 62722-2-1 | 60 lm |
Packing details
| Packing level 1 | 9010299213389, 9010299213389 |
Other Technical data
| Mounting method | Built-in |
| Protection class | I |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| Connection type | Other |
| Colour housing | White |
| Voltage type | DC |
| Built-in width | 120 mm |
| Housing material | Aluminium |
| Built-in length | 220 mm |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Exchangeable control gear | No |
| Built-in height/depth | 75 mm |
| Power factor | 1 |
Downloads
Videos
Description

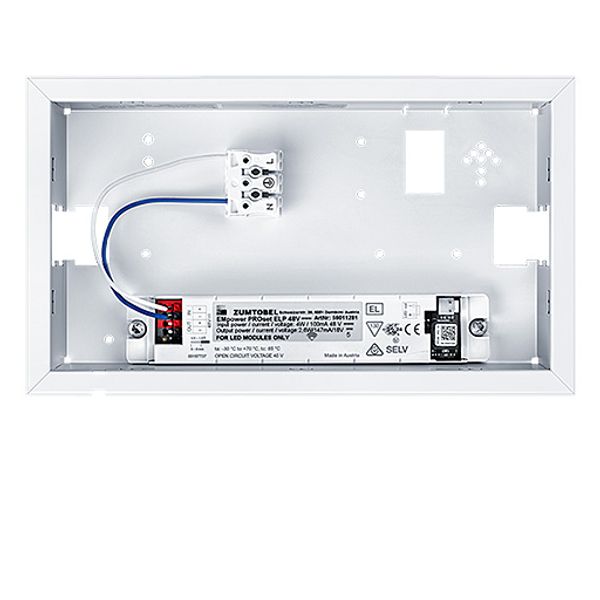

LED Escape sign luminaire; Luminaire for central emergency power supply with 48V DC, for single monitoring of the luminaire via Powerline in connection with the nBox System, settable emergency light level; wall recessed; housing made of sheet steel, white (RAL 9016), coated; NFC interface for addressing, configuration and maintenance via PROset Pen (article no.: 22170290) or PROset app; addressing alternatively also optically possible; luminaire easy to install. Zero maintenance thanks to LED technology; plug-in terminals 2.5 mm², through-wiring possible for 1.5 mm²; Luminaire input power: 3.9 W, protection class: IP40, class of protection: SC1; Impact strength: IK03; Non-maintained and maintained mode settable via the nBox, Maintained and non-maintained mode: -30 °C to +40 °C; power supply: 48 V DC (FELV), ; dimensions of luminaire including escape sign: 232 x 135 x 54 mm; weight: 0.73 kg; Luminaire wired with halogen-free leads; max. line length from emergency power source to last luminaire: 200 m.; ;
