PUNCH 3 LV MSP 6600-930 L15 HF - Suspended LED luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
458,91 €
EAN: 9010757044784
MPN: 96636012
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PUNCH 3 LV MSP 6600-930 L15 HF - Suspended LED luminaire |
| Brand | Thorn |
| Categories |
Pendant lights
|
| Country of origin | BG |
| Harmonized System Code | 9405 1190 00 |
| Width | 162 mm |
| Colour rendering index CRI | 90-100 |
| Length | 1581 mm |
| Height/depth | 56 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 3000 K |
| Max. system power | 48.1 W |
| Rated luminous flux according to IEC 62722-2-1 | 6490 lm |
Packing details
| Packing level 1 | 9010757044784, 9010757044784 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Colour housing | White |
| Voltage type | AC |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Housing material | Steel |
| Direct-/indirect proportion separately controllable | No |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct/indirect |
| Light sharing | Symmetric |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| With suspension | No |
| Suitable for workplace according to EN 12464-1 | No |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 14 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 85 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 80 % |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Exchangeable control gear | Yes |
Downloads
Description

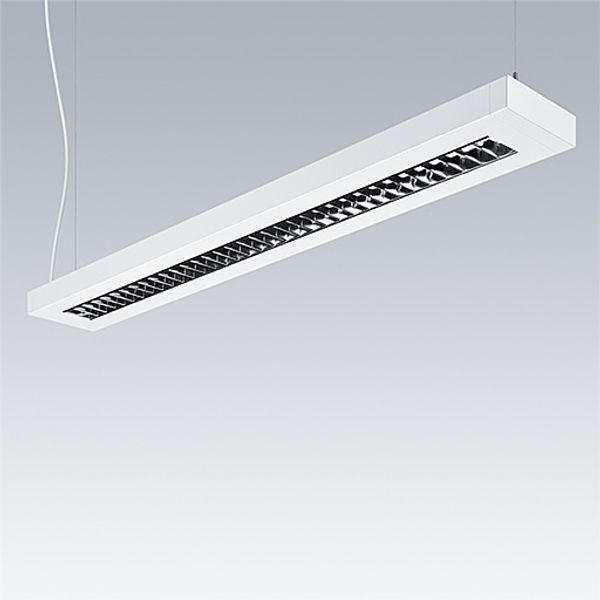

A slim, suspended luminaire with direct/indirect distribution. fixed output control gear Electronic,. Body: sheet steel, powder coated white (close to RAL9016). Endcaps: sheet steel powder coated white (close to RAL9016). Louvre: glossy aluminium,. Class I electrical, IP20, Impact strength: IK03. Electrical connection via piano key terminal block. Complete with 3000K LED.
Y-Suspension connector included - Suspension cord with ceiling rose to be ordered separately (22171581).

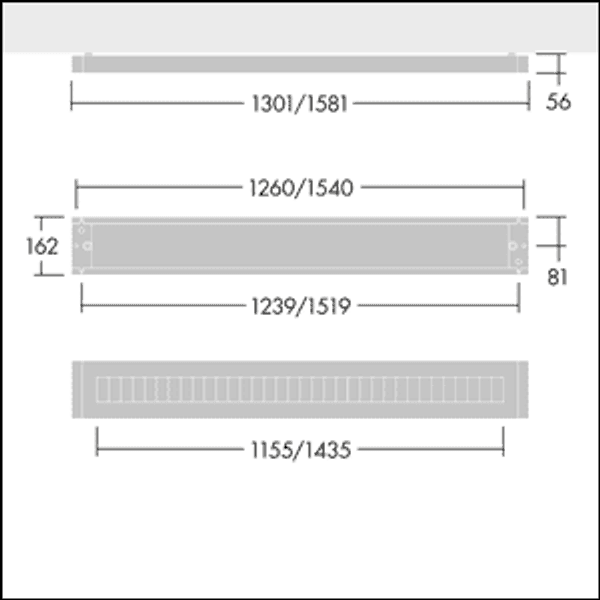

Dimensions: 1581 x 162 x 56 mm
Luminaire input power: 48.1 W
Luminaire luminous flux: 6490 lm
Luminaire efficacy: 135 lm/W
Weight: 3.8 kg
