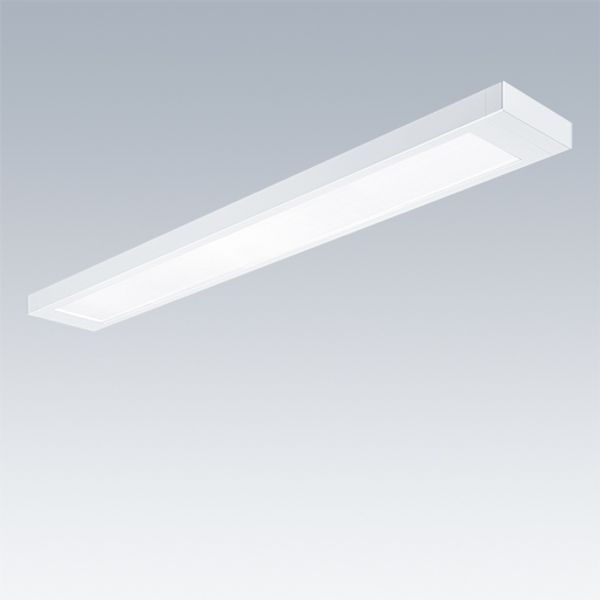

PUNCH 3 LRO MSC 3800-940 L15 HF - Surface mounted LED luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
399,27 €
EAN: 9010757045040
MPN: 96636038
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PUNCH 3 LRO MSC 3800-940 L15 HF - Surface mounted LED luminaire |
| Brand | Thorn |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Surface mounting lamps |
| Country of origin | BG |
| Harmonized System Code | 9405 1190 00 |
| Width | 162 mm |
| Colour housing | White |
| Colour rendering index CRI | 90-100 |
| Length | 1542 mm |
| Height/depth | 50 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 4000 K |
| Max. system power | 29.7 W |
| Rated luminous flux according to IEC 62722-2-1 | 3705 lm |
Packing details
| Packing level 1 | 9010757045040, 9010757045040 |
Other Technical data
| Protection class | I |
| Lamp holder | Other |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 0 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Steel |
| Built-in length | 0 mm |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Rated ambient temperature according to IEC62722-2-1 | 0-25 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 19 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 90 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 85 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 80 % |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 0 mm |
Downloads
Description
A slim, surface mounted luminaire with direct distribution. fixed output control gear Electronic,. Body: sheet steel, powder coated white (close to RAL9016). Endcaps: sheet steel powder coated white (close to RAL9016). Light guided via backlit multilayer PMMA LRO luminance reducing optic with UGR <19, closed optical system to prevent damage from electrostatic discharge, ideal for schools and offices. Class I electrical, IP20, Impact strength: IK03. Electrical connection via piano key terminal block. Complete with 4000K LED.
Can be used as a suspended direct only luminaire when combined with Y-Suspension connector and suspension kit (to be ordered separately 22171581 & 22171349).
Dimensions: 1542 x 162 x 50 mm
Luminaire input power: 29.7 W
Luminaire luminous flux: 3705 lm
Luminaire efficacy: 125 lm/W
Weight: 3.8 kg
