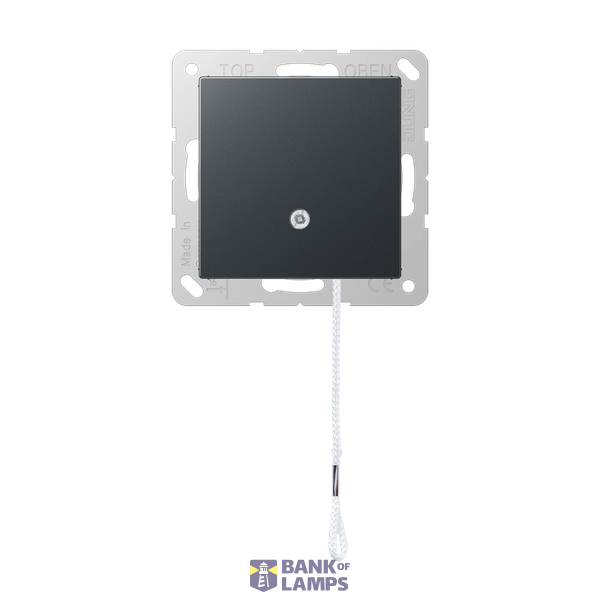

Pull Cord AS, 1-Pole, 2-Way, 10 AX, 250 V, Max. 100 W
Technical Information
| Item condition | New |
| Manufacture name | Pull cord switch A506BFNUZ |
| Brand | Jung |
| Categories |
Switches
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| ETIM | EC001590 |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Assembly arrangement | Basic element with central cover plate |
| Method of operation | Pull cord |
| Rated current | 0 A |
| Type of fastening | Mounting with claw and screw |
Packing details
| Packing level 1 | 4011377131521 |
| Packing level 2 | 4011377131521 |
| Packing level 3 | 4011377131521 |
| Packing level 4 | 4011377131521 |
Other Technical data
| Halogen free | Yes |
| With mounting plate | No |
| Connection type | Screwed terminal |
| Illumination | No |
| Surface protection | Other |
| Built-in depth | 0 mm |
| Feedback-signal contact | No |
| Material quality | Thermoplastic |
| Material | Plastic |
| Number of rockers | 0 |
| RAL-number (similar) | 1013 |
| Switching current for fluorescent lamps | 10 AX |
| Push button switch | No |
| Washing machine switch | No |
| Surface finishing | Glossy |
| Device width | 55 mm |
| Device height | 55 mm |
| Device depth | 0 mm |
| Label space/information surface | No |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Pull cord switch used for manual electrical operation in a low-depth flush mounted setup.Implements basic pull cord activation, suitable for simple power systems without advanced integration. Rated current:0 A.Mounting method:Flush mounted (plaster).Built-in depth:0 mm.Halogen-free material confirmed.Material type:Plastic, Thermoplastic quality with glossy surface finish and other protection.RAL-number similar to 1013 (off-white tone).Width:55 mm, Height:55 mm, Depth:0 mm.Assembly arrangement includes basic element with central cover plate.Nominal voltage rating at 250 V via screwed terminal connection type.Switching current rated for fluorescent lamps up to 10 AX.Function has no illumination or label space/information surface defined;lacks mounting plate inclusion or rockers/buttons as part of its design structure.Suitable fastening by claw and screw method ensures secure placement during installation processes consistent with industry standards in low-profile switching systems designed minimal intrusion into wall planes during flush assembly where box depth requires only a minimum allocation
