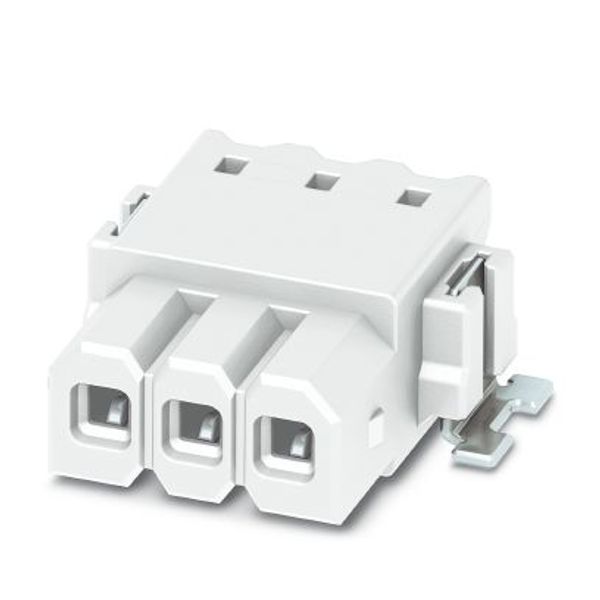

PTSM 0,5/ 3-HHI0-2,5-SMDWR44PA - PCB header

Order only Minimal order quantity: 1000

Price (excl. VAT):

0,75 € per pcs

This price is valid until 24.12.26

Subtotal: 750,00 € MOQ: 1000

EAN: 4063151651480

MPN: 1342505

Package: 1

Box: 2

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	PTSM 0,5/ 3-HHI0-2,5-SMDWR44PA - PCB header
Brand	Phoenix Contact
Categories	PCB Connectors & Terminals
Country of origin*	IN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6930 00
Height	5 mm
Operating temperature	-40-100 °C
Inflammability class of insulation material according to with UL94	V0
Material insulation body	Other

Packing details

Packing level 1	4063151651480
Packing level 2	4063151651480

Description

PCB terminal block, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 3, product range: PTSM 0,5/..-HHI-SMD WH, pitch: 2.5 mm, mounting: SMD soldering, color: signal white, Pin layout: Linear pad geometry, number of solder pins per potential: 1, type of packaging: 44 mm wide tape
