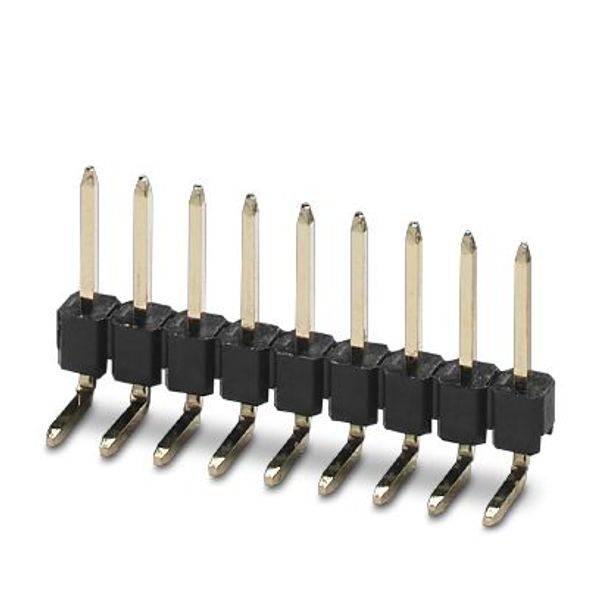

PSTD 0,65X0,65/9-1-H-2,54 - Pin strip image 1

PSTD 0,65X0,65/9-1-H-2,54 - Pin strip image 2

PSTD 0,65X0,65/9-1-H-2,54 - Pin strip image 3

PSTD 0,65X0,65/9-1-H-2,54 - Pin strip

In stock: No Vendor stock: No Minimal order quantity: 50

Price (excl. VAT):

1,90 € per pcs

This price is valid until 24.12.25

Subtotal: 95,00 € MOQ: 50

EAN: 4063151359461

MPN: 1252179

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	PSTD 0,65X0,65/9-1-H-2,54 - Pin strip
Brand	Phoenix Contact
Categories	PCB Connectors & Terminals
Country of origin	CN
Harmonized System Code	8536 6930 00
Type of connection	Printed circuit board to cable
Rated voltage	100 V
Number of poles	9
Operating temperature	-40-105 °C
Rated surge voltage	1.5 kV
Type of electric connection	Other
Connector model	Fixed connector
Angle PCB/contact	Other
Rated current In	3 A

Packing details

Packing level 1

4063151359461, 4063151359461

Other Technical data

Colour housing	Black
Contact type	Pin
Inflammability class of insulation material according to with UL94	V0
Over voltage category	III
Pollution degree	2
Length pin	6.1 mm
Modular spacing connections	2.54 mm
Number of plug-in contact rows	1
Type of banding	Carton (for SMD)
Modular spacing contacts	2.54 mm
Material insulation body	Other
Type of PCB fastening	Other

Description

Pin strip, color: black, nominal current: 3 A (per contact), rated voltage (III/2): 100 V, type of contact: Pin, number of potentials: 9, number of rows: 1, number of positions: 9, number of connections: 9, product range: PSTD 0,65X0,65/..-1-H, pitch: 2.54 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 6.1 mm, locking: without, type of packaging: packed in cardboard
