PST DIMLITE MASTER TEC-GP WH IP54 - Motion sensor_x000D_ otion sensor

Name: PST DIMLITE MASTER TEC-GP WH IP54 - Motion sensor_x000D_ otion sensor
Brand: Zumtobel
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 9010299518248

MPN: 22171642

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	PST DIMLITE MASTER TEC-GP WH IP54 - Motion sensor_x000D_ otion sensor
Brand	Zumtobel
Categories	Luminaire accessories
Country of origin	AT
Harmonized System Code	8536 5080 00
Colour	White
Type of accessory/spare part	Movement sensor

Packing details

Packing level 1

9010299518248, 9010299518248

Downloads

Deep link REACH Declaration DOC CE (Declaration of conformity CE) Declaration RoHS Sales brochure

Description

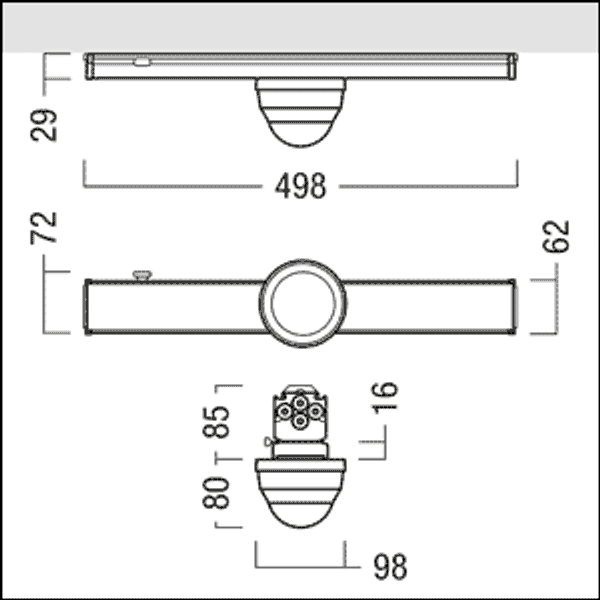

Passive infrared motion detector, white, for sensor heights up to 16m with integral DIMLITE single for controlling up to 25 DALI/DSI electronic ballasts. TECTON module with IP54 protection rating; Tool-free mechanical and electrical installation on the mounting rail via side lever; Corrosion-protected trunking rail adapter made of roll-formed, hot-dip galvanised sheet steel with zinc-magnesium coating and polyester lacquer finish.; housing colour white. 100% light when person detected in room. When area is unoccupied, after time delay the light fades slowly (60 sec.) to 10% light level or completely off (0%). (Settable via jumper position). The detection range can be restricted using detachable cover segments. Setting of delay time (15 seconds to 30 minutes) on the sensor and adjustment of brightness threshold value is only possible via IR remote control (22169184). Delivery state of the sensor: 1000 lux brightness threshold value and 3 minute delay time. No setup or addressing required. Cannot be connected to other bus systems. Dimensions: 498 x 98 x 165 mm; weight: 0.68 kg
