PSEN sg2c-5LPKLS-M12/5 switch
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
1 139,09 €
EAN: 4046548080049
MPN: 570829
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PSEN sg2c-5LPKLS-M12/5 switch |
| Brand | Pilz |
| Categories |
Position Switches
|
| Country of origin | CH |
| Harmonized System Code | 8536 5019 00 |
| Suitable for safety functions | Yes |
| With status indication | Yes |
| Type of switching contact | Other |
| Number of safety auxiliary contacts | 2 |
| With escape release | Yes |
| Guard locking force | 2000 N |
| Number of contacts as normally closed contact | 6 |
| Number of contacts as normally open contact | 5 |
| With auxiliary release | No |
| Type of guard locking | Bistable |
Packing details
| Packing level 1 | 4046548080049, 4046548080049 |
Other Technical data
| Housing material | Plastic |
| Type of interface for safety communication | None |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Other |
| Degree of protection (IP) | IP65 |
| Type of interface | None |
| Rated control supply voltage magnet drive at DC | 24 V |
| Width sensor | 46.3 mm |
| Height of sensor | 74.5 mm |
| Length of sensor | 555 mm |
| Ambient temperature during operating | -20-55 °C |
Description

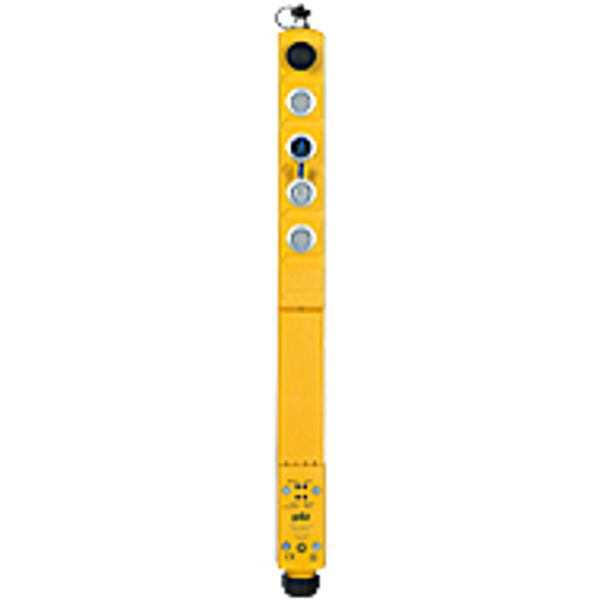

Safety gate system, safe interlock and safe guard locking device For applications up to SIL CL 3 and PL e. Consisting of 5 pushbuttons: 1. Illuminated pushbutton for activating the safety gate, 2. Push button for accessing & interlocking the safety gate, 3. Key switch (3 positions) 4. Illuminated pushbutton, 5. Section stop pushbutton M12/5 connection with enable switch Delivery scope: Sensing device with pushbuttons (spare part).
