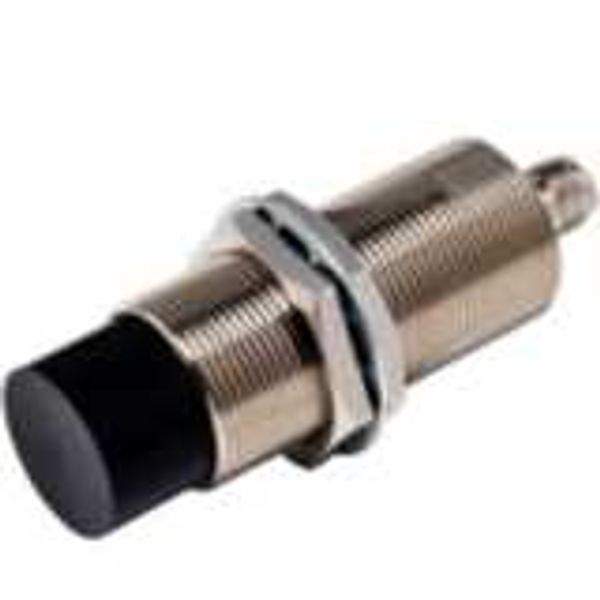

Proximity sensor, inductive, nickel-brass, long body, M30, unshielded, E2EN2256C
Order only
Price (excl. VAT):
62,47 €
EAN: 4549734482653
MPN: E2E-X50MB2L30-M1
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Proximity sensor, inductive, nickel-brass, long body, M30, unshielded, E2EN2256C |
| Brand | Omron |
| Categories |
Proximity Sensors
|
| Country of origin | NL |
| Harmonized System Code | 8536 5080 00 |
| Voltage type | DC |
| Switching distance | 50 mm |
| Type of electric connection | Connector M12 |
| Type of switching output | PNP |
| Type of switch function | Breaker contact |
| Construction type housing | Cylinder, screw-thread |
| Mechanical mounting condition for sensor | Not flat |
| Supply voltage | 10-30 V |
| Performance level according to EN ISO 13849-1 | None |
| SIL according to IEC 61508 | None |
Packing details
| Packing level 1 | 4549734482653, 4549734482653 |
Other Technical data
| Cascadable | Yes |
| Housing material | Metal |
| Suitable for safety functions | No |
| Coating housing | Nickel-plated |
| Switching frequency | 100 Hz |
| Number of semiconductor outputs with signalling function | 1 |
| Number of contact energized outputs with signalling function | 0 |
| Number of protected semiconductor outputs | 0 |
| Number of protected contact energized outputs | 0 |
| Type of interface for safety communication | None |
| Rated control supply voltage at DC | 10-30 V |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| With monitoring function downstream switching devices | No |
| Type of actuation | Metallic Target |
| Type of interface | None |
| Compression-resistant | No |
| Diameter sensor | 30 mm |
| Length of sensor | 95 mm |
| Interference resistance to magnetic fields | Immune against magnetic DC-field |
| Degree of protection (NEMA) | Other |
Downloads
Description
Proximity sensor, inductive, nickel-brass, long body, M30, unshielded, 50 mm, DC, 3-wire, PNP NC, M12 connector
