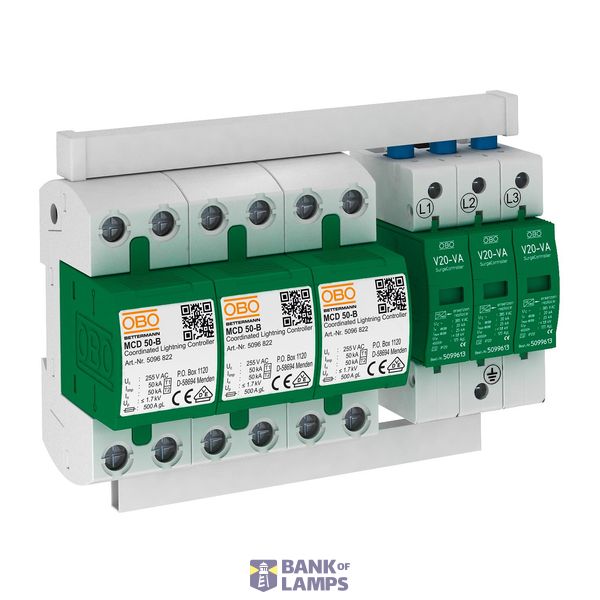

Protection set 3-pol. + bez noplūdes stravas 255V

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Protection set 3-pol. + bez noplūdes stravas 255V
Brand	OBO Bettermann
Country of origin*	HU
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 3030 00
ETIM	EC001457
Lightning impulse current (10/350 µs)	100 kA
Voltage protection level	1.3 kV
Max. continuous voltage AC	255 V
Nominal voltage AC	230 V
Degree of protection (IP)	IP20

Packing details

Packing level 1	4012195429067
Packing level 2	4012197069674

Other Technical data

Number of poles	3
Construction size	Other
Remote signalling	No
Follow current extinguishing capability	25 kA
Signalling at the device	Optic
Integrated backup fuse	No
Max. conductor cross section solid (solid, stranded)	50 mm²
Energy-coordinated protection effect with regard to the terminal equipment	No
System configuration DC	No
System configuration IT	No
System configuration TN	No
System configuration TN-C	No
System configuration TN-S	No
System configuration TT	No
System configuration other	No
System configuration TN-C-S	No
Voltage switching spark gap technology	No
Overcurrent protected voltage tapping	No

Description

Protection-Set VA, zibensaizsardzības un pārsprieguma novadītāju kombinācija, tips 1+2 • Zibensaizsardzības potenciālu izlīdzināšanai atb. VDE 0185-305 (IEC 62305) • Zibensizlādes strāvas novadīšanas spēja līdz 50 kA (10/350) katram polam un līdz 125 kA (10/350) N-PE • Bez noplūdes strāvas • Novadītājs, iespraužams, ar savienojuma tiltiem, pieslēguma spailes ir marķētas • Iekapsulēti, dzirksteles neizvadoši novadītāji ievietošanai sadalītāju korpusos Pielietojums: industriālos objektos ar īpašām prasībām.
