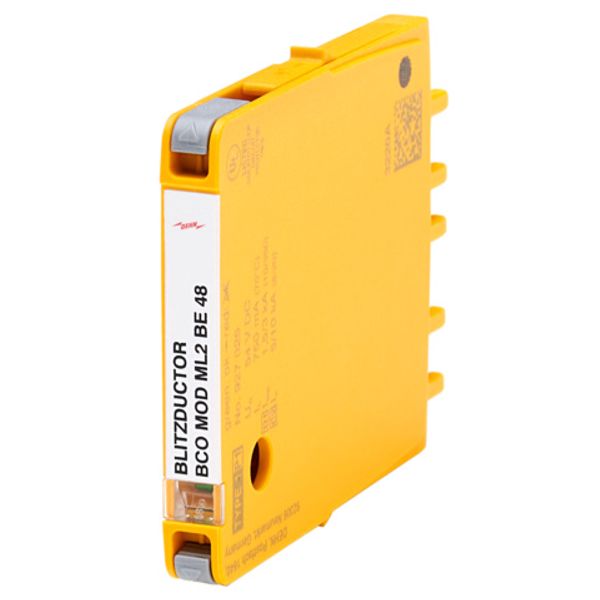

Protection module for 2 single cores BLITZDUCTORconnect w. fault indic

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

131,59 €

This price is valid until 31.12.25

EAN: 4013364410145

MPN: 927025

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	Protection module for 2 single cores BLITZDUCTORconnect w. fault indic
Brand	Dehn
Categories	Surge Protection Devices (SPD)
Country of origin	DE
Harmonized System Code	8536 3010 00
Degree of protection (IP)	IP20
Nominal voltage DC	48 V

Packing details

Packing level 1

4013364410145, 4013364410145

Other Technical data

Mounting method	On basic element
Lightning impulse current (10/350 µs)	3 kA
Number of conductors (without earthing)	2
Limiting frequency	5 MHz
Max. continuous voltage AC	38.1 V
Nominal discharge surge current (8/20)	10 kA
Nominal load current	0.75 A
Voltage protection level core/core	140 V
Voltage protection level core/earth	90 V
Max. continuous voltage DC	54 V
Pro-active thermo-control	Yes
Assembly width	6 mm
Earthing via	Other

Downloads

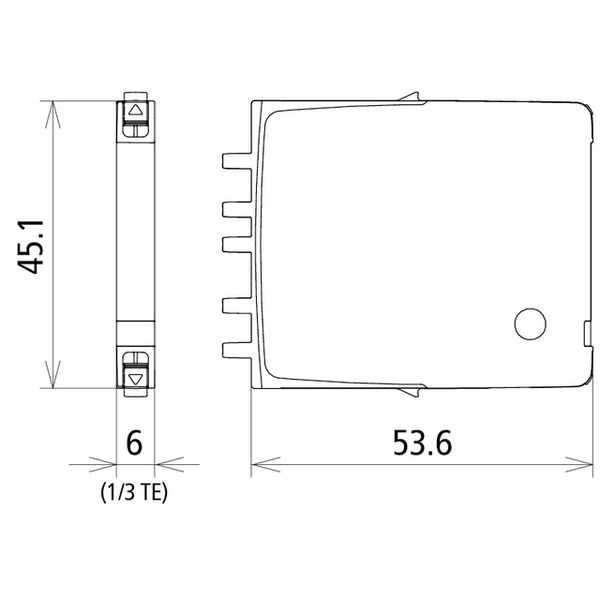

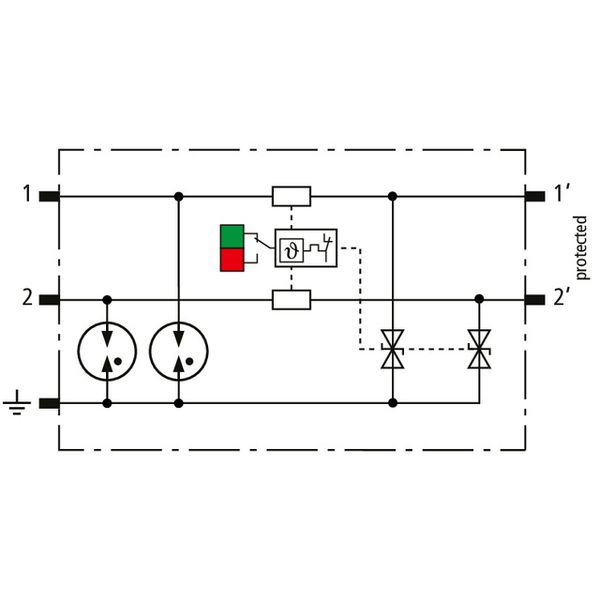

Product data sheet Dimensioned drawing Circuit diagram Deep link REACH

Description

Protection module with a width of 6 mm for BLITZDUCTORconnect combined arrester with status inidication for protecting two single lines sharing a common reference potential as well as unbalanced interfaces.
