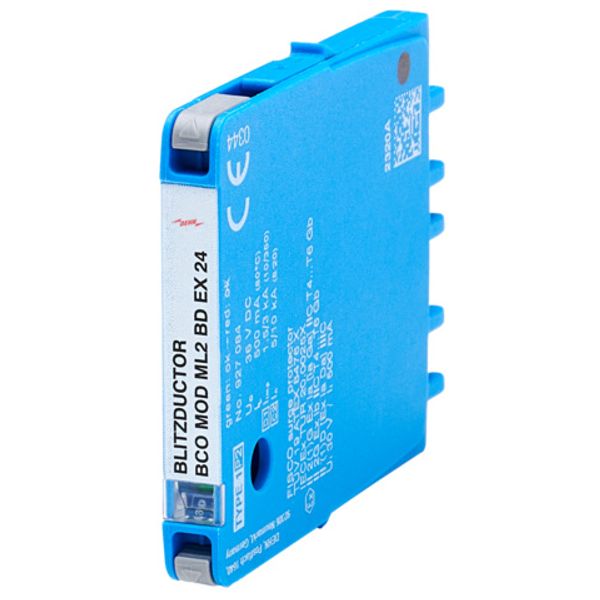

Protection module for 1 pair BLITZDUCTORconnect w. fault indication
Order only
Price (excl. VAT):
139,86 €
EAN: 4013364410206
MPN: 927084
Package: 1
Estimate delivery time at our warehouse (approx.):
2 weeks
Technical Information
| Item condition | New |
| Manufacture name | Protection module for 1 pair BLITZDUCTORconnect w. fault indication |
| Brand | Dehn |
| Categories |
Surge Protection Devices (SPD)
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3010 00 |
| Max. continuous voltage AC | 25.4 V |
| Nominal discharge surge current (8/20) | 10 kA |
| Nominal load current | 0.5 A |
| Voltage protection level core/core | 65 V |
| Max. continuous voltage DC | 36 V |
| Degree of protection (IP) | IP20 |
| Nominal voltage DC | 24 V |
Packing details
| Packing level 1 | 4013364410206, 4013364410206 |
Other Technical data
| Mounting method | On basic element |
| Lightning impulse current (10/350 µs) | 3 kA |
| Number of conductors (without earthing) | 2 |
| Limiting frequency | 3.5 MHz |
| Voltage protection level core/earth | 1100 V |
| Pro-active thermo-control | Yes |

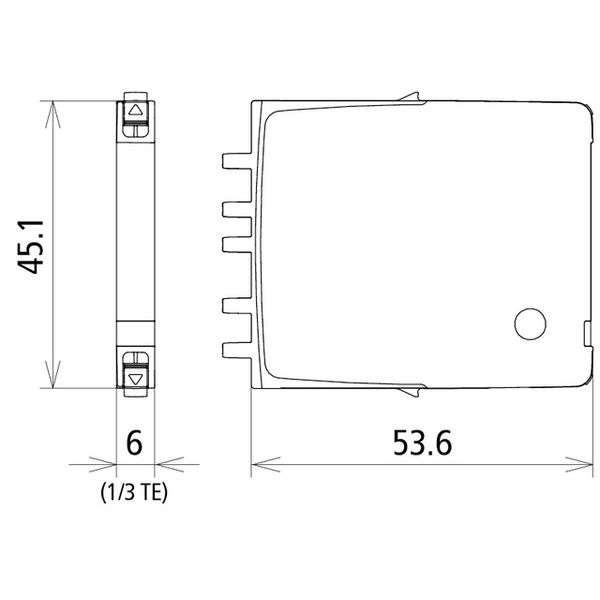

| Assembly width | 6 mm |
| Signal disconnection | No |
| Earthing via | Other |
Downloads
Description
Protection module with a width of 6 mm for BLITZDUCTORconnect combined arresters with status indication for protecting one pair of intrinsically safe measuring circuits and bus systems, meets FISCO requirements. Insulation strength > 500 V line-ground.
