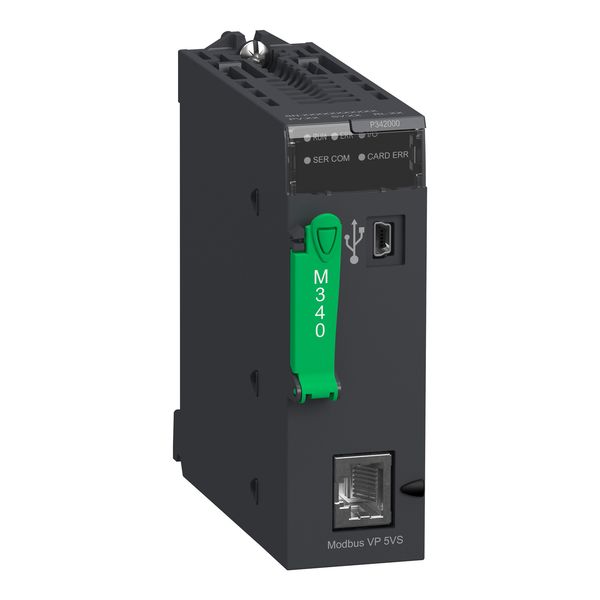

Processor Modicon M340 CPU340-20 1024 digital 256 analog I/O Modbus
Technical Information
| Item condition | New |
| Manufacture name | Processor Modicon M340 CPU340-20 1024 digital 256 analog I/O Modbus |
| Brand | Schneider Electric |
| Categories |
PLC Units & I/O Modules
|
| Country of origin | FR |
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 0 |
| Voltage type of supply voltage | DC |
| Memory size | 2048 kByte |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces other | 0 |
| Additional program memory possible | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supply voltage DC | 24 V |
Packing details
| Packing level 1 | 3595863999266 |
| Packing level 2 | 3595863999260 |
Other Technical data
| Width | 0 mm |
| Height | 0 mm |
| Depth | 0 mm |
| With display | No |
| Suitable for safety functions | No |
| Type of memory | RAM |
| Processing time (1K, binary operation) | 0 ms |
| Supporting protocol for LON | No |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| With optical interface | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | Yes |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for other bus systems | No |
| Redundancy | No |
| Rail mounting possible | No |
| Explosion safety category for dust | Other |
| System accessory | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| IO link master | No |
| Number of relay outputs | 0 |
| Max. number of time switches | 0 |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
Downloads
Description
This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 1 rack configuration, 36 application specific channels and 11 slots. It is a processor module with a current consumption of 72mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 1024 multi-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 128kb data, 2048kb, 1792kb program internal RAM memory capacity. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
