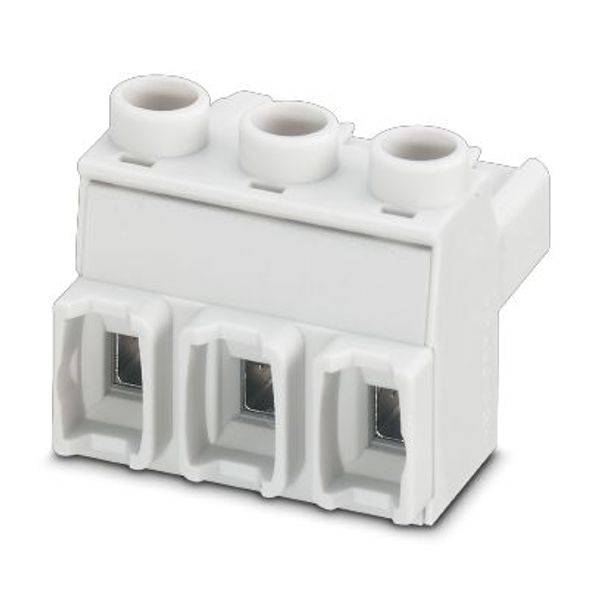

GMSTBT 2,5 HV/3-ST-7,25 GY7035 - Printed-circuit board connector
Order only
Price (excl. VAT):
2,35 €
per pcs
EAN: 4046356495349
MPN: 2199553
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | GMSTBT 2,5 HV/3-ST-7,25 GY7035 - Printed-circuit board connector |
| Brand | Phoenix Contact |
| Categories |
Cable Connectors
|
| Country of origin | PL |
| Harmonized System Code | 8536 6990 00 |
| Type of connection | Other |
| Rated voltage | 1000 V |
| Number of poles | 0 |
| Contact type | Bus |
| Operating temperature | -40-105 °C |
| Rated surge voltage | 8 kV |
| Angle contact/conductor connection | Other |
| Rated current In | 16 A |
Packing details
| Packing level 1 | 4046356495349, 4046356495349 |
Other Technical data
| Colour housing | Other |
| Housing material | Other |
| Coating housing | Other |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electric connection | Screw connection |
| Material of contact surface | Tin |
| Over voltage category | III |
| Pollution degree | 2 |
| Connectable cable type | Other |
| Modular spacing connections | 7.25 mm |
| Number of plug-in contact rows | 1 |
| Modular spacing contacts | 7.25 mm |
| Connectable conductor cross section solid-core | 0.2-2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25-2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.2-2.5 mm² |
| With protective conductor | No |
| Material insulation body | Other |
Description
PCB connector, nominal cross section: 2.5 mm², color: light grey, nominal current: 16 A, rated voltage (III/2): 1000 V, contact surface: Tin, type of contact: Female connector, number of rows: 1, number of positions: 3, product range: GMSTBT 2,5 HV/..-ST, pitch: 7.25 mm, connection method: Screw connection with tension sleeve, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, locking: without, mounting: without, type of packaging: packed in cardboard
