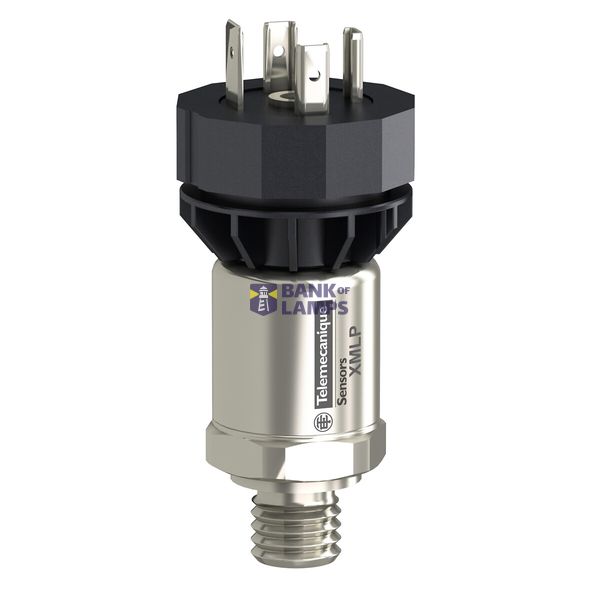

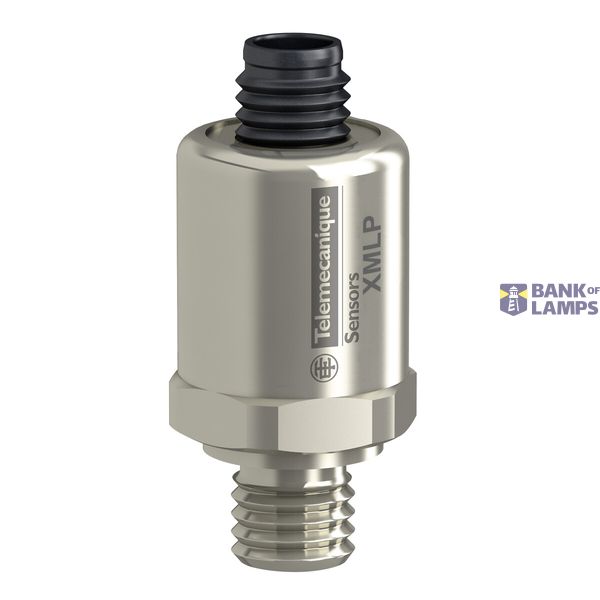

PRESSURE TRANSMIT 400B 0-10V G1 4A MALE FPM SEAL M12 CONN.OUTPUT PIN 4
Order only
EAN: 3666916022108
MPN: XMLP400BM71F
Package: 1
Price (excl. VAT)
215,06 €
per unit
MOQ: 1
EDT to our warehouse: 24-26 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | PRESSURE TRANSMIT 400B 0-10V G1 4A MALE FPM SEAL M12 CONN.OUTPUT PIN 4 |
| Brand | Telemecanique |
| Categories |
Pressure Sensors
|
| Country of origin* | CH |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9026 2020 00 |
| ETIM | EC000243 |
| Switch off pressure | 0-400 bar |
| Bursting pressure | 1600 bar |
| Engaging pressure | 0-400 bar |
| Suitable as 2-point controller | No |
| Suitable as limiter | No |
| Suitable as guard | Yes |
| Max. test pressure | 800 bar |
| Medium temperature | -30-120 °C |
Packing details
| Packing level 1 | 3666916022108 |
Other Technical data
| Depth | 38.1 mm |
| With display | No |
| Diameter | 26 mm |
| Number of normally open contacts as main contact | 0 |
| Number of normally closed contacts as main contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| With manual on/off switch | No |
| Initial setting | 0-400000 hPa |
| End setting | 0-400000 hPa |
| Number of auxiliary contacts as change-over contact | 0 |
| Type of electric connection | Other |
| Explosion-proof | No |
| Degree of protection (IP) | IP65/IP67 |
| Rated voltage Ue at DC | 24 V |
| Electronic version | Yes |
| End value measuring range pressure | 40000000 Pa |
| With hand operation | No |
| Degree of protection (NEMA) | Other |
| Max. operating pressure | 400000 hPa |
| Thread size | Other |
