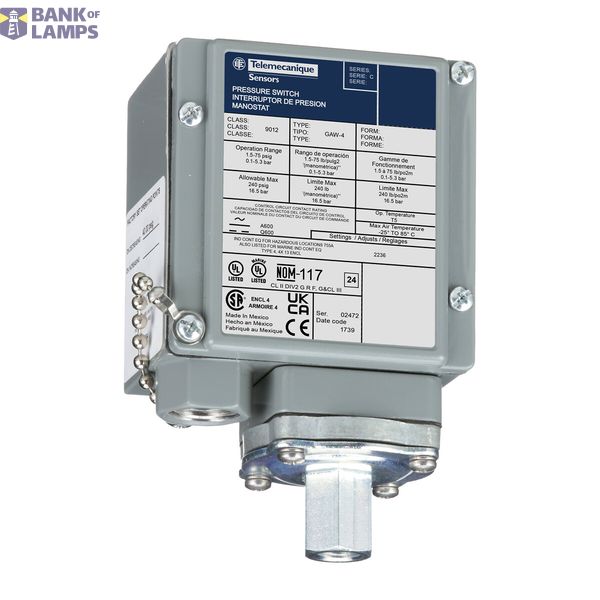

pressure switch 9012G - adjustable scale - 2 thresholds - 1.5 to 75 ps
Order only
EAN: 3666916085905
MPN: 9012GAW4
Package: 1
No pricing modes available.
Technical Information
| Item condition | New |
| Manufacture name | pressure switch 9012G - adjustable scale - 2 thresholds - 1.5 to 75 ps |
| Brand | Telemecanique |
| Categories |
Pressure Sensors
|
| Country of origin* | MX |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9032 2000 90 |
| ETIM | EC000243 |
| Switch off pressure | 0.1-5.17 bar |
| Engaging pressure | 0.1-5.17 bar |
| Suitable as 2-point controller | No |
| Suitable as limiter | No |
| Suitable as guard | No |
| Medium temperature | -40-121 °C |
Packing details
| Packing level 1 | 3666916085905 |
Other Technical data
| Width | 3.5 mm |
| Height | 5.55 mm |
| Depth | 2.63 mm |
| With display | No |
| Number of normally open contacts as main contact | 1 |
| Number of normally closed contacts as main contact | 1 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| With manual on/off switch | No |
| Initial setting | 100-5170 hPa |
| Number of auxiliary contacts as change-over contact | 0 |
| Type of electric connection | Screw connection |
| Explosion-proof | No |
| Degree of protection (IP) | Other |
| Rated voltage Ue at DC | 125-250 V |
| Electronic version | No |
| With hand operation | No |
| Degree of protection (NEMA) | Other |
| Max. operating pressure | 5170 hPa |
| Thread size | Other |
Downloads
Description
This product is part of the Nema Pressure Switches range, an offer of electromechanical pressure switches. This electromechanical pressure switch has normally closed - normally opened, SPDT-DB (single pole double throw, double break), form Z, snap action contacts and a range on decreasing pressure of 1.5psi to 75psi. The pressure switch with an approximate adjustable differential at mid range of 3.5psi to 15psi and a maximum pressure of 240psi. It is furnished with screw clamp terminals for electrical connection and 0.25inch 18 NPTF for fluid connection. This switch has a diaphragm actuator which can be operated from any position, adjustable differential scale for internal settings and regulation of 2 thresholds. Offers mechanical durability of about 5 million operating cycles. The enclosure is made of die cast aluminium alloy 380. It is available in size of 3.5inch (W) x 2.63inch (D) x 5.55inch (H) and weighs 3lb. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centres, complex and special machines. It is a NEMA 4/4X/13 rated product. This product is certified by CE, CSA and UL. Meets UL 508 standards. Single stage pressure switch is control circuit rated device used in pneumatic or hydraulic systems on a wide variety of machine and process applications to protect the equipment and control or monitor the system pressure.
