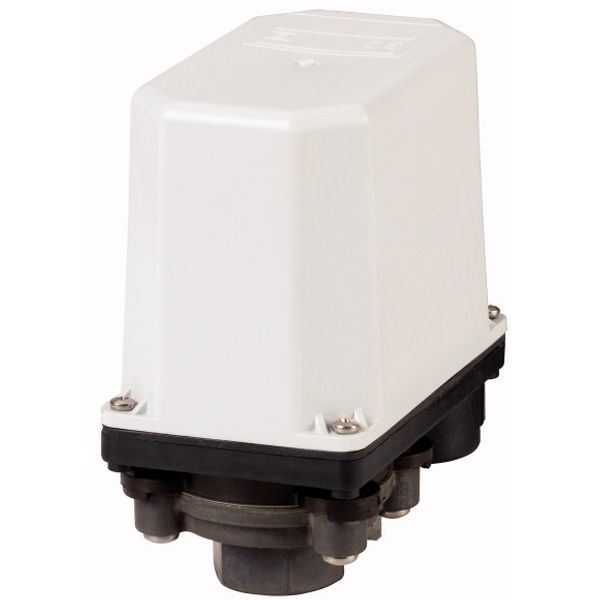

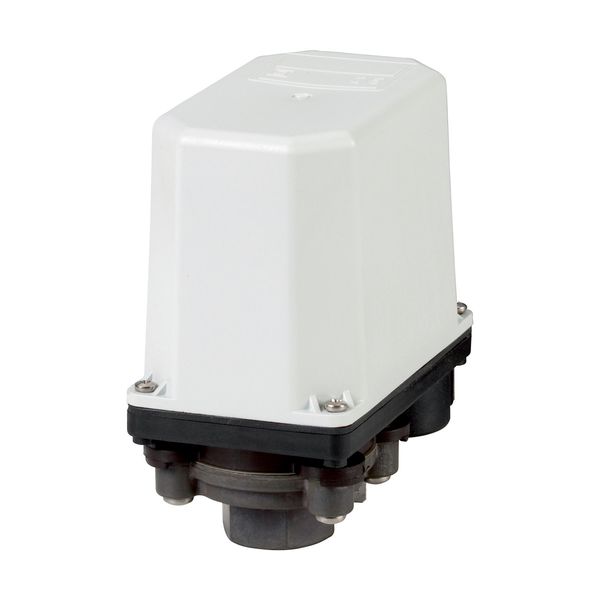

MCSN4 Pressure switch, 3p, 7bar
In vendor's stock
Price (excl. VAT):
54,77 €
EAN: 4015080576792
MPN: 057679
Package: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | MCSN4 Pressure switch, 3p, 7bar |
| Brand | EATON |
| Categories |
Pressure Sensors
|
| Country of origin* | HU |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| Switch off pressure | 0-4.5 bar |
| Bursting pressure | 90 bar |
| Engaging pressure | 0-3.8 bar |
| Suitable as 2-point controller | Yes |
| Suitable as limiter | No |
| Suitable as guard | Yes |
| Max. test pressure | 32 bar |
| Medium temperature | 25-80 °C |
| Pressure-switching differential | 0 bar |
Packing details
| Packing level 1 | 4015080576792 |
Other Technical data
| Width | 60 mm |
| Height | 111 mm |
| Depth | 96 mm |
| Connection | Internal thread cylindrical BSPP-G (ISO 228-1) |
| With display | No |
| Diameter | 0 mm |
| Rated operation power at AC-3, 400 V | 5.5 kW |
| Number of normally open contacts as main contact | 0 |
| Number of normally closed contacts as main contact | 3 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated operation current Ie at AC-3, 400 V | 11.5 A |
| Rated operation current Ie at AC-1, 400 V | 0 A |
| With manual on/off switch | No |
| Switching capacity at AC-3, 240 V | 0 kA |
| Initial setting | 0 hPa |
| End setting | 0 hPa |
| Number of auxiliary contacts as change-over contact | 0 |
| Type of electric connection | Screw connection |
| Explosion-proof | No |
| Degree of protection (IP) | IP65 |
| Initial value measuring range pressure | 0 Pa |
| Rated voltage Ue at AC 50 Hz | 0-400 V |
| Rated voltage Ue at AC 60 Hz | 0-400 V |
| Rated voltage Ue at DC | 0-250 V |
| Electronic version | No |
| End value measuring range pressure | 0 Pa |
| With hand operation | No |
| Adjustable current range | 0 A |
| Degree of protection (NEMA) | Other |
| Max. operating pressure | 7000 hPa |
| Thread size | 1/2 inch |
Description
IEC EN 60947-5-1, IP65_x, pressure monitoring of liquid and gaseous media, e. g. compressed air, for switching of loads, make and break pressure: separately adjustable
