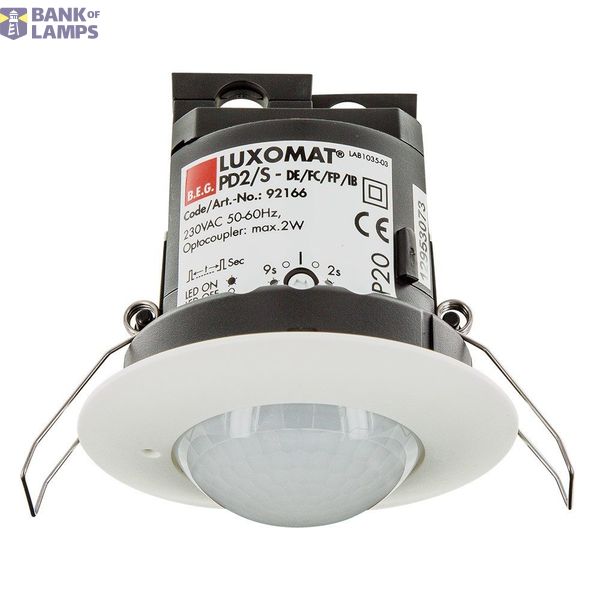

Presence Sensor Slave Ip20 Recessed, Compatible With Master Dali Sensors Type Optic A, Maximum Installation Height 5m.
Order only
Not Available
Technical Information
| Item condition | New |
| Manufacture name | PRESENCE SENSOR SLAVE IP20 RECESSED, COMPATIBLE WITH MASTER DALI SENSORS TYPE OPTIC A - MAXIMUM INSTALLATION HEIGHT 5M. |
| Brand | GEWISS |
| Harmonized System Code | 9405 9900 00 |
| ETIM | EC000133 |
| Mounting method | Flush mounted (plaster) |
| Colour | White |
| Width | 0 mm |
| Model | Presence detector |
| Height | 0 mm |
| Depth | 15 mm |
| Connection type | Screwed terminal |
| Frequency | 50-60 Hz |
| Max. transmission range frontally | 0 m |
| Max. transmission range sideways | 0 m |
| Max. switching power | 0 W |
| Scan angle | 360 ° |
| Degree of protection (IP) | IP20 |
| Min. switch-on time | 0 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Optimum mounting height | 3 m |
| Max. presence range | 0 m² |
| Max. switching power LED | 0 W |
| Sensor type | Passive infrared |
Packing details
| Packing level 1 | 4007529921669, 4007529921669 |
Other Technical data
| Halogen free | No |
| Surface protection | Untreated |
| Creep-under protection | No |
| Voltage type | AC |
| Switching-on delay | 0 s |
| Switch-off delay | 0 s |
| Built-in depth | 50 mm |
| With remote control | Yes |
| Diameter | 85 mm |
| Built-in width | 0 mm |
| Built-in diameter | 68 mm |
| Staircase monitoring | No |
| Bridging switch | No |
| Suitable for wireless transmission | No |
| Material quality | Thermoplastic |
| Temperature | -25-50 °C |
| Max. starting current | 0 A |
| Material | Plastic |
| Response value sensitivity adjustable | Yes |
| Dim function with dimmer basic element | No |
| Response value luminosity | 10-2500 lx |
| Suitable for C-load | No |
| Diameter detection range on floor | 0 m |
| Remote operation | No |
| HVAC-control | No |
| Constant light control | Yes |
| Substation input | No |
| RAL-number (similar) | 0 |
| With signal unit | No |
| Control current | 0 mA |
| Teach-function for response value luminosity | No |
| Networkable | No |
| Forced switch off | No |
| Built-in length | 0 mm |
| With alarm function | No |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle horizontal | 0-360 ° |
| Suitable for wall mounting | No |
| Number of switching zones | 0 |
| With DALI interface | No |
| IFTTT support available | No |
| Forced switch on | No |
| Min. starting current | 0 A |
| Min. depth of built-in installation box | 0 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Suitable for ceiling mounting | Yes |
| Anti-bacterial treatment | No |
Downloads
Description
SMART LIGHTING INTERACTIVE Lighting control systems - SMART LIGHTING INTERACTIVE - Perfect solutions to ensure Efficiency and Energy Saving, which combine well-being and safety for people at the same time. The LED lighting fixtures become intelligent thanks to the ability to communicate, exchange signals and data with smart devices.
