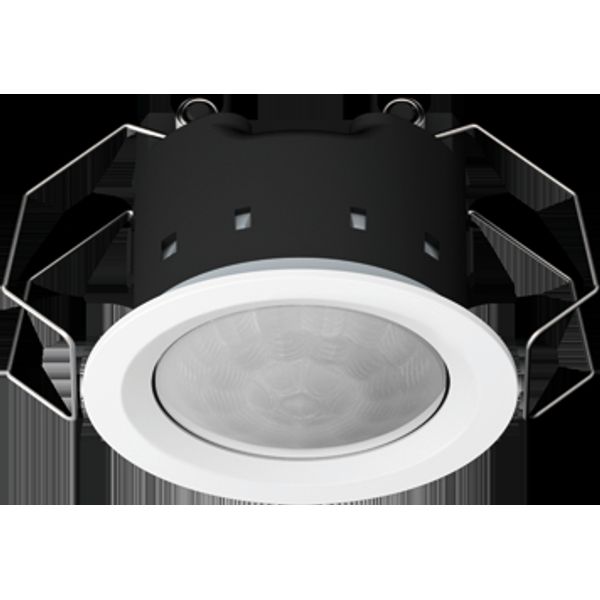

Presence indicator KNX Presence detector, mini

Name: Presence indicator KNX Presence detector, mini
Brand: Jung
Price: 203.670 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

203,67 €

This price is valid until 24.12.26

EAN: 4011377127548

MPN: 3361-1MWW

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Presence indicator KNX Presence detector, mini
Brand	Jung
Categories	Bus System Devices (KNX/Modbus)
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	9031 8080 00
Model	Presence detector
Bus system KNX	Yes
Bus system radio frequent	No
Bus system Powernet	No
With bus connection	Yes
Bus system LON	No
Bus system KNX radio	No
Radio frequent bidirectional	No

Packing details

Packing level 1

4011377127548

Other Technical data

Mounting method	Surface mounted (plaster)
Colour	White
Surface protection	Other
Creep-under protection	No
Number of channels	0
Staircase monitoring	No
Switching power	0 W
Max. transmission range frontally	0 m
Max. transmission range sideways	6 m
Material	Plastic
Diameter detection range on floor	12 m
Substation input	No
RAL-number (similar)	9016
Teach-function for response value luminosity	No
Operation mode switch	No
Transparent	No
Animal zone	No
Surface finishing	Glossy
Detection angle vertical	0-80 °
Detection angle horizontal	0-360 °
Min. switch-on time	0 s
Max. duty cycle	0 min
Response value luminosity adjustable	Yes
Switch-off delay self-learning	No
Optimum mounting height	3 m
Min. depth of built-in installation box	0 mm

Downloads

Product data sheet Deep link REACH

Description

Presence detector KNX mini monitors areas for motion or presence triggering system actions via bus connection.Integrates with KNX systems, ideal for automated lighting or environmental control in smart buildings. Surface mounted (plaster).Built from white plastic, glossy surface finishing, similar to RAL 9016.Horizontal detection angle:0°–360°.Vertical detection angle:0°–80°.Max transmission range sideways:6 m.Diameter detection range on floor:12 m.Optimum mounting height listed as "3" m and "3" m.;Min depth of built-in installation box:0 mm.Response value luminosity adjustable enabled.No teach-function for response value luminosity adjustment available.Detection triggered without creep-under protection;no staircase monitoring support integrated. Bus system KNX-enabled with active bus connection interface configured specifically for wired installations;not compatible with radio frequency links or other bus protocols like LON/Powernet systems. Switch-on time minimum set to immediate activation (0 s);no defined delays/self-learning shutoff implemented during deactivation modes nor operational toggling linked manually/switch-orientated uses personally
